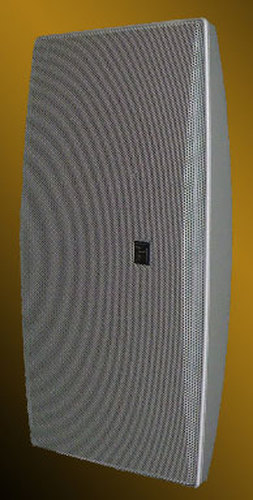

TOA BS-1034S 5" Wall-Mount Slim Box Speaker, Silver

The BS1034S is a wall-mount speaker matched with a supplied plug-in speaker receptacle, for easy installation. The 10W rated input BS1034S combine a low-frequency 5" (12cm) cone-type speaker and a high-frequency balanced dome-type speaker. An M4 screw terminal input connector allows easy connections. The speakers are driven on a high-impedance (100V or 70V) line, with rated inputs.

The speaker enclosure’s design proportions are based on the Golden Ratio (1: 1.618). A low profile blends in well with room décor. Both vertical and horizontal installations are possible. Comes with a silver net grille.

Includes:

• Speaker receptacle x1
• Wall mounting screw x2

Features:

• Low profile
• Beautiful design due to the Golden Ratio (1: 1.618)
• Innovative speaker design
• Easy and quick installation
• Thanks to the ingenious location of the TOA logo, the speaker creates a distinctly different impression depending on whether it is installed horizontally or vertically.
• Two colors are available: BS-1034 is off-white, which matches any interior style, and BS-1034S is silver, which adds a quality appearance.
• Ideally suited for BGM and announcements
• Five-year warranty

Specifications:

• Rated Input: 10W
• Rated Impedance:
  • 100V line: 1kΩ (10W), 2kΩ (5W), 3.3kΩ (3W), 10kΩ (1W)
  • 70V line: 500Ω (10W), 1kΩ (5W), 2kΩ (2.5W), 3.3kΩ (1.5W), 10kΩ (0.5W)
• Sensitivity: 90dB (1W @ 1m)
• Frequency Response: 120Hz - 20kHz
• Speaker Component: Low frequency: 12cm (5") cone-type, High frequency: Balanced dome-type
• Input Connector: M4 screw terminal, distance between barriers: 11mm (0.43")
• Finish:
  • Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent), silver
  • Net: Steel plate, silver, paint
• Dimensions: 208 (W) × 327 (H) × 79mm (D) - (8.19" × 12.87" × 3.11")
• Weight: 1.4kgs (3.09lbs)
