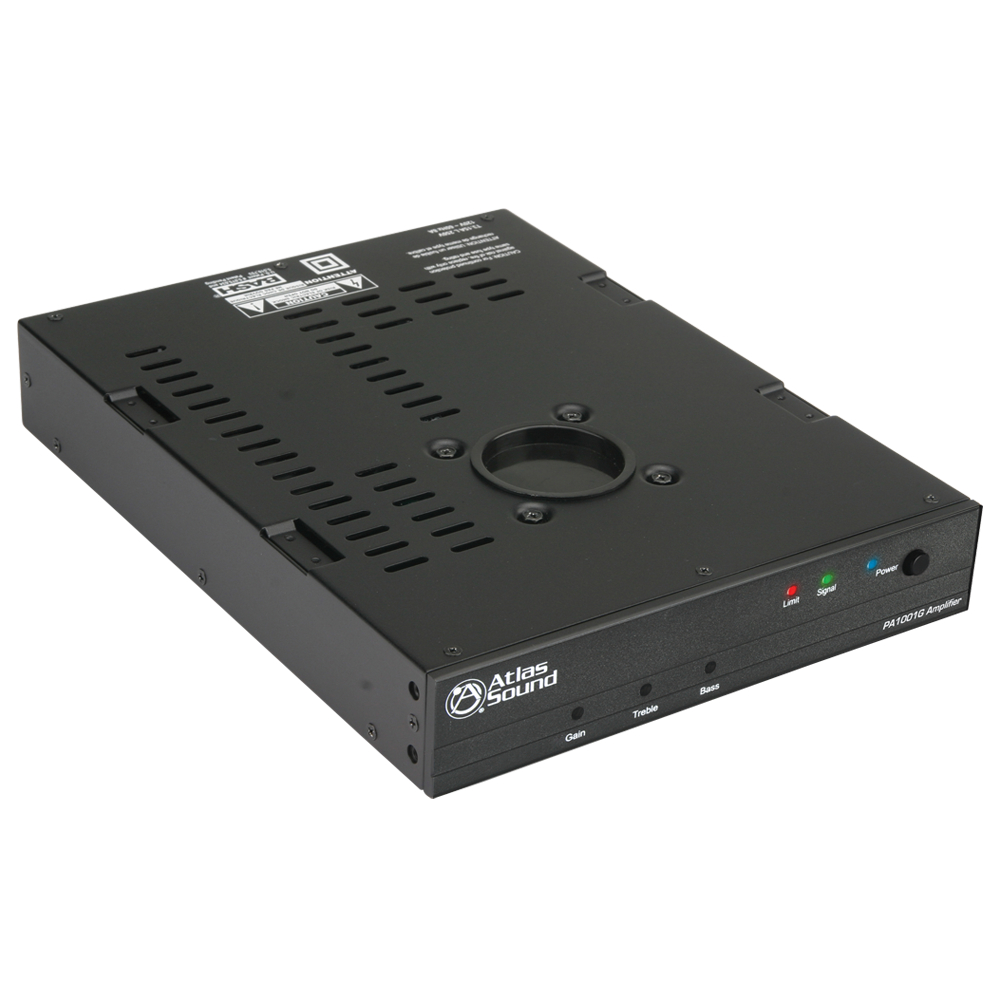

Atlas Sound PA1001G
100W/70V, Single Channel, Pole Mounted Amplifier

OUR PART #:  PA1001G

With an ultra compact design requiring only 1RU in height and 1/2 rack wide in space, the Atlas/IED PA1001G amplifier...
Learn More
Our Price: $339.99
List Price: $424.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound PA1001G
Qty:
In Stock

Similar Products

With an ultra compact design requiring only 1RU in height and 1/2 rack wide in space, the Atlas/IED PA1001G amplifier, a 100W into a 70V or 100V distributed system offers the power to meet most amplifier demands. The PA1001G power supply supports 120-240VAC power for global use and operation. The patent pending through hole chassis design makes it convenient to use with ceiling mounted video projectors. One or two units can be rack mounted also allowing it to be used in more traditional applications (rack mount kit sold separately). Remote turn-on is easily achieved by either audio or AC trigger sensors. If focused power is needed, an optional Hi-pass filter is employed. Master remote level control is easily done via an external 10k poteneometer and a line out makes it easy to daisy chain amplifiers. The PA1001G has incorporated a mixer function that allows you connect two (2) different sources to the amp. The summed RCA unbalanced inputs and the balanced input are electrically summed together and are electrically isolated from each other. The PA1001G can be used in many ways ranging from boardroom, restaurant, commercial paging and back ground music applications.

Atlas/IED PA1001G Features:

  • 100W x 1, 70V/100V
  • Ultra Efficient Amplification Technology
  • Patent Pending, Through Chassis Mounting System for Use with Pole Mounted Projector Systems
  • Multi Voltage Power Supply Allows for Worldwide Operation
  • Optional Rack Mount Kit - PA702-RMK

Atlas/IED PA1001G Specifications:

  • Optional Rack Mount Kit PA702-RMK
  • Output Power 100W @ 70V into 50 Ohms, 100W @ 100V into 100 Ohms
  • Frequency Response 30Hz-20kHz No High Pass Filter +/-3dB
  • 100Hz-20kHz High Pass Engaged +/-3dB
  • Power Consumption 10 Watts in Sleep Mode
  • 16 Watts in Active Idle Mode
  • 165 Watts at Full Load 70V
  • Dimensions (HxWxD): 1.75" x 8.5" x 13.5" (44.5 x 215.9 x342.9 mm)
  • Weight 4.9 lbs (2.4 kg)
