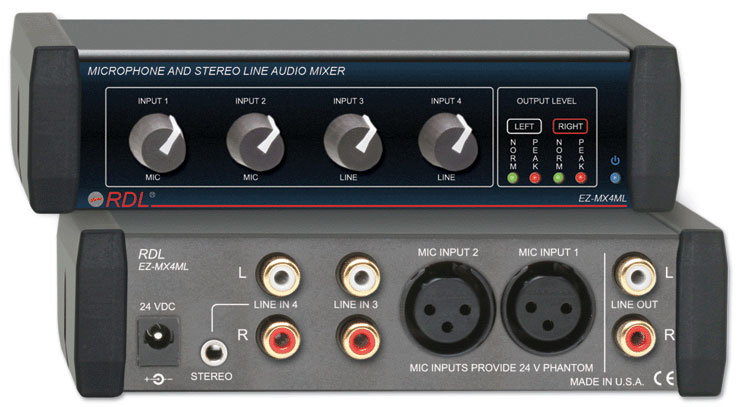

Radio Design Labs EZ-MX4ML
Microphone and Stereo Line Mixer 4x1

OUR PART #  EZ-MX4ML

Our Price: $167.34
List Price: $223.83
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. The mic inputs provide phantom voltage on XLR jacks. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment.

The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems. Power supply included.

Radio Design Labs EZ-MX4ML Features:

  • Four Input Mixer, Two Mic and Two Line Inputs
  • Two Balanced Microphone Inputs on XLR
  • One Unbalanced Line Input on RCA Jacks
  • One Line Input on MINI or RCA Jacks
  • Unbalanced Output on RCA Jacks
  • Microphone Inputs Provide Phantom Voltage
  • Dual-LED VU Meter for Each Channel

Radio Design Labs EZ-MX4ML Specifications:

  • Mic inputs (2): 1.2 kO balanced on XLR jack, mic-level, -11 dBu max.
  • Line inputs (3): > 10 kO, -10 dBV nominal on RCAjacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
  • Level controls (4): Off to 50 dB gain (mic), Off to12 dB gain (line)
  • Output: -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
  • Frequency Response: 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01dB, line input)
  • THD+N: < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
  • Crosstalk: < -72 dB (1 kHz)
  • CMRR: > -55 dB (20 to 20 kHz, mic input)
  • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
  • Phantom: 24 V (IEC 1938: 1996-12)
  • Noise: < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
  • 24 Vdc power supply current: 50 mA (idle), 80 mA(max.), 100 mA (max. with phantom)  Powersupply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions (WxD): 5.75” x 3” (14.6 x 7.6 cm)
  • Mounting size: 1/3 rack width
Surface Mount Bezel 1/3 Rack Radio Design Labs EZ-SMB2 Surface Mount Bezel 1/3 Rack

Surface mount bezel for 1/3 rack width EZ products.

In Stock

Our Price:$28.39List Price: $33.50You save 15%!

24 VDC 500mA Switching Power SupplyRadio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply

Radio Design Labs' PS-24AS is a 24 Vdc switching power supply with a North American AC plug.  500 mA, dc plug.Specifications: Input: 100 to 240 VACOutput: 24 Vdc, 500 mA (UL, CSA)Dimensions: 1.65" x 2.75" x 1.45" (4.2 x 7 x 3.7 ...

In Stock

Our Price:$22.93List Price: $30.67You save 25%!

Under Counter Bracket Radio Design Labs EZ-UCB2 Under Counter Bracket

Under counter bracket pair for all EZ product widths

In Stock

Our Price:$18.61List Price: $21.96You save 15%!

Component Chasis, 6 x 1/6 RURadio Design Labs EZ-CC6 Component Chasis, 6 x 1/6 RU

Component Chassis for 6 Increments of 1/6 Rack WidthFeatures: Mounts All EZ A/V Products Mounts EZ Storage Drawers Cover Lifts Off for Easy Product Mounting Integral Heavy-Duty Non-Skid Rubber Feet

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$80.64List Price: $107.87You save 25%!

Rack Adapter Radio Design Labs EZ-RA6 Rack Adapter

Rack Adapter for 6 Increments of 1/6 Rack Width Mounts All EZ A/V Products Mounts EZ Storage Drawers Base Plate Slides Out for Easy Product Mounting Occupies One RU in Standard 19¨ Rack

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$45.81List Price: $61.27You save 25%!

Desktop Chassis 1/3 RackRadio Design Labs EZ-DC2 Desktop Chassis 1/3 Rack

Desktop Chassis for 1/3 Rack Width EZ Products Mounts 1/3 Width EZ Product to Desktop Installs Quickly With Two Screws Covers Cable Port in Desktop Provides Space for Excess Wire

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$44.36List Price: $59.33You save 25%!

Filler Panel, 1/6RU Radio Design Labs EZ-FP1 Filler Panel, 1/6RU

Filler Panel - 1/6 Rack Width for EZ-RA6 or EZ-CC6.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$9.31List Price: $10.98You save 15%!

Click to download

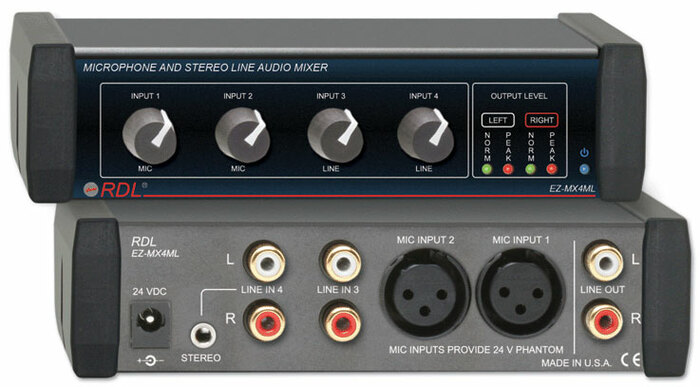

Radio Design Labs EZ-MX4ML
