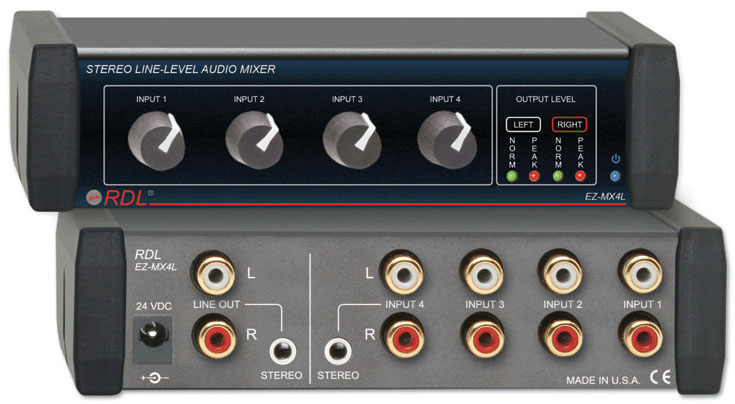

RDL EZ-MX4L Stereo Line-Level Audio Mixer, 4X1

The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems, and commercial sound systems.

Applications

• Houses of worship
• Restaurants
• Clubs
• Meeting Rooms
• Studios
• Home Component Systems
• Commercial Sound Systems

Includes

• Power supply

Features

• Four-channel line-level audio mixer
• Three unbalanced line inputs on RCA jacks
• One line input on 3.5mm or RCA jacks
• Unbalanced output on 3.5mm or RCA jacks
• Dual-LED VU meter for each channel

Specifications

• Inputs (5): > 10 kO, -10 dBV nominal on RCA jacks(4) or Mini Jack (1), +20 dBV max.
• Level controls (4): Off to 12 dB gain
• Outputs (2): -10 dBV nominal on RCA jacks (1) or Minijack (1, stereo), +16 dBV max.
• Frequency Response: 10 Hz to 20 kHz (±0.01 dB, line)
• THD+N: < 0.05%
• Crosstalk: < -72 dB (1 kHz)
• Metering: Dual-LED VU Meter for Left and Right,calibrated to -10 dBV output
• Noise: < -85 dB (below -10 dBV output)
• 24 Vdc power supply current: 30 mA (idle), 60 mA(max.)
• Power supply input voltage: 100 to 240 VAC
• Warranty: 3 Years; contact RDL technical support department for assistance
• Case dimensions (WxD) : 5.75” (14.6 cm) x 3” (7.6 cm)
• Mounting size: 1/3 rack width
