Radio Design Labs RU-MLA2T
Dual Mic/Line Preamplifier with Transformer

OUR PART #:  RUMLA2T

Radio Design Labs' RU-MLA2T is a dual channel audio preamplifier.
Learn More
Our Price: $422.62
List Price: $565.34
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs RU-MLA2T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

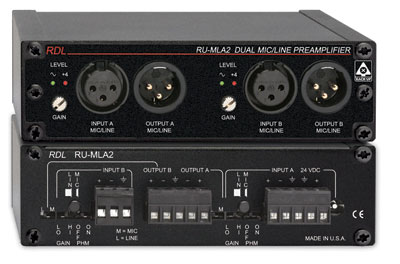

Radio Design Labs' RU-MLA2T is a dual channel audio preamplifier. The inputs and outputs may be connected through the front panel XLR jacks or on the rear panel detachable terminal blocks. Each input accepts either a balanced microphone or line level signal. Each output provides either a microphone or line level signal. Both the front panel XLR connectors and the rear panel terminals are active at all times. It may be rack mounted with the XLR jacks facing forward, or may be reverse mounted using the RDL RU-FP1 Filler Panel/Reverse Mount Kit.

Each audio input is equipped with a rear panel switch to select between MIC and LINE level. Two additional switches on each input allow setting the MIC input for LO or HI gain and for enabling or disabling standard 24 Vdc phantom. The two microphone gain settings allow the connection of a wide variety of dynamic and condenser microphones. Each output is provided with a separate rear-panel switch to set the associated level to either MIC or LINE. Audio outputs may be wired balanced or unbalanced. Crosstalk between channels is below the noise floor, allowing the RU-MLA2T to be operated as a stereo preamplifier or as two separate mono preamplifiers.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Gain trim for each channel is provided on a front panel control. The knurled adjustment includes a slot so the gain may be adjusted by hand or by screwdriver. An RDL dual LED VU meter is provided above each channel gain trimmer. The meters are calibrated to indicate +4 dBu for outputs set to line level.

The rear panel provides a detachable terminal block and a power input jack to connect 24 Vdc power. The RU-MLA2T audio outputs are active balanced. Each output of the RU-MLA2T is equipped with a studio-quality audio output transformer.

Features:

  • Two-channel Audio Preamplifier
  • Front Panel XLR Input / Output Jacks
  • Detachable Input / Output Terminal Blocks
  • Switch-selectable Mic or Line Inputs
  • Switch-selectable Mic Gain and Phantom
  • Gain Trim on Each Input
  • Each Output Switch-selectable Mic or Line

Specifications:

  • Inputs (2): XLR(front); detachable term block(rear)
  • Input level (for +4 dBu output): Switch-selectable (rear panel) MIC/LINE
    - Mic: -48 dBu to -3 dBu (LO GAIN); -65 dBu to -20 dBu (HI GAIN)
    - Line: -15 dBu to +28 dBu
  • Input Impedance:
    - Mic: 2 kOhm balanced, switchable 24 V phantom (IEC 1938: 1996-12)
    - Line: > 10 kOhm balanced; may be connected unbalanced
  • Outputs (2): XLR(front); detachable term block(rear)
  • Output level: Switch-selectable (rear panel) MIC/LINE
  • Output Impedance: 150 O balanced
  • Channels: 2 (A and B; stereo or dual mono)
  • Gain Trim (2): Front panel adjustable; one per channel
    Mic: Off to 52 dB gain (LO GAIN); Off to 69 dB gain (HI GAIN)
    Line: Off to 20 dB gain
  • Frequency Response:
    - Mic: 80 Hz to 50 kHz (+/- 0.75 dB); < 10 dB @ 20 Hz (integral high-pass filter)
    - Line: 15 Hz to 50 kHz (+/- 0.1 dB)
  • THD+N: < 0.1% (Mic); < 0.005% (Line)
  • CMRR: > 60 dB (Mic); > 50 dB (Line)
  • Residual Noise (below +4 dBu LINE output or -45 dBu MIC output):
    - Mic: -79 dB (50 dB Gain); -70 dB (Mic 60 dB Gain)
    - Line: -85 dB
  • Crosstalk: Below noise floor (A to B; B to A)
  • Headroom: > 20 dB (above +4 dBu LINE output)
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 80 mA
  • Ambient Operating Environment: 0° C to 55° C
