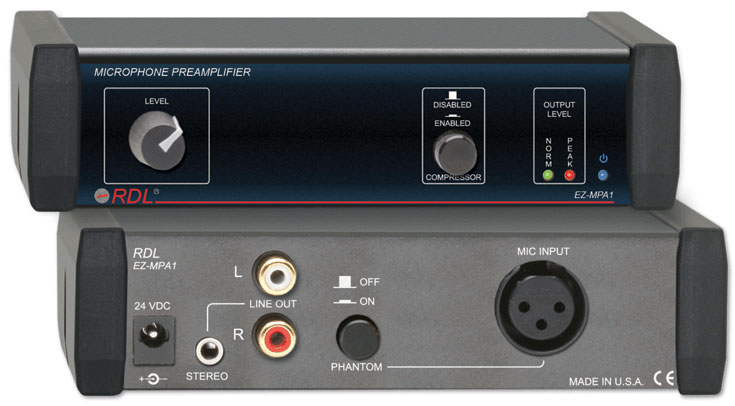

Radio Design Labs EZ-MPA1
Mic Preamp with Compressor, Stereo Output

OUR PART #  EZ-MPA1

Our Price: $151.06
List Price: $202.06
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The EZ-MPA1 is a microphone preamplifier with front-panel volume control and audio level metering. A front-panel switch engages an audio compressor to control overloads and clipping during high level audio bursts or peaks from the microphone. Dynamic or condenser microphones are both supported with rear-panel switchable phantom voltage. The preamplified mic signal feeds both channels of the line output on RCA or MINI jacks. LED VU metering facilitates easy level adjustment.

The EZ-MPA1 is ideal for adding microphone inputs to mixers and amplifiers with line inputs. It is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios and commercial sound systems. Power supply included.

Features:

  • Balanced Microphone Input on Rear-Panel XLR
  • Switch-Selectable Phantom on Rear Panel
  • Unbalanced Output on MINI or RCA Rear-Panel Jacks
  • Preamp Feeds Left and Right Output Channels
  • Front-Panel Compressor Enable/Disable Switch
  • Audio Compressor Controls Overloads
  • Front-Panel LEVEL Control
  • Dual-LED VU Meter

Specifications:

  • Input: 1.2 kO balanced on XLR jack, mic-level, -11 dBu max.
  • Level control: Off to 50 dB gain
  • Outputs (2): -10 dBV nominal on RCA jacks or Mini jack, +16 dBV max. without compression, -4 dBV max. with 20 dB compression
  • Frequency Response: 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter)
  • THD+N: < 0.1% (35 Hz to 20 kHz, -50 dBu input)
  • Compression: 20 dB range, switch-selectable
  • CMRR: > 55 dB (20 to 20 kHz)
  • Metering: Dual-LED VU Meter, calibrated to -10 dBV output
  • Phantom: Switch-selectable 24 V (IEC 1938: 1996-12)
  • Noise: < -65 dB (below -10 dBV output, -50 dBu input)
  • 24 Vdc power supply current: 55 mA (idle), 80 mA (max.), 100 mA (max. with phantom) Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
  • Mounting size: 1/3 rack width
