Radio Design Labs EZ-PH1
Stereo Phono Preamplifier

OUR PART #  EZ-PH1

Our Price: $101.39
List Price: $135.62
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

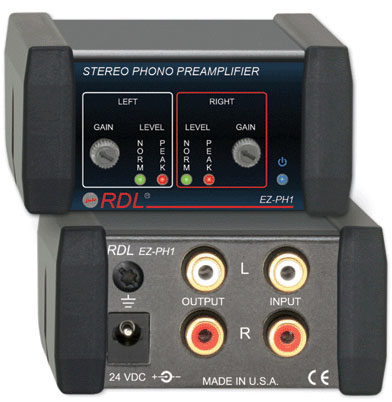

Radio Design Labs' EZ-PH1 is a stereo phono preamplifier with front-panel volume trimmers and audio level metering. Stereo RCA jacks and a grounding screw are provided on the rear panel for connecting a turntable tone arm. The input is preamplified with RIAA equalization to feed the line output RCA jacks. Left and right channel front-panel LED VU metering facilitates adjustment of the level trimmers.

The EZ-PH1 is ideal to add phono inputs to mixers and amplifiers with line inputs, or for direct connection to recording decks for dubbing records onto other media. It is used in clubs, educational facilities, homes and studios. Power supply included.

Radio Design Labs EZ-PH1 Features:

  • Phono Input on Gold-Plated RCA Jacks
  • Line Output on Gold-Plated RCA Jacks
  • Front-Panel GAIN Trimmer for Each Channel
  • Dual-LED VU Meter for Each Channel
  • RIAA Equalization
  • Turntable Grounding Screw Provided

Radio Design Labs EZ-PH1 Specifications:

  • Input: 47 kO on stereo RCA jacks
  • Input Level: -18 dBV max.
  • Gain: OFF to +55 dB (1 kHz)
  • Output: -10 dBV nominal on stereo RCA jacks
  • Equalization: RIAA
  • Frequency Response: 20 to 20 kHz (±0.75 dB referred to RIAA curve)
  • Crosstalk: < -75 dB (1 kHz)
  • THD+N: < 0.05% (20 to 20 kHz, 36 dB gain)
  • Noise: < -74 dB (36 dB gain, 1 kHz), < -80 dB (36 dB gain, 1 kHz,“A-weighted”)
  • 24 Vdc power supply current: 30 mA (idle), 45 mA (max.) Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 2.9” (7.4 cm)W x 3” (7.6 cm)D
  • Mounting size: 1/6 rack width
