Product Overview

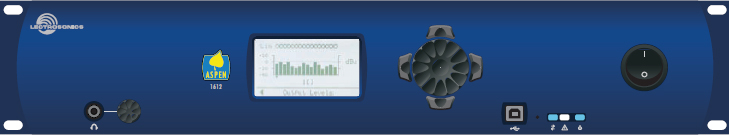

Lectrosonics' 1624 Aspen Series mixer offers unlimited input expansion and 48 mix buses in order to give you superior scalibility. The Proportional Gain Algorithm provides seamless auto-mixing and integrates easily with with echo cancellation, analog mixing consoles, or any other type of audio system. And with TCP/IP addressibility for control through Ethernet, the 1624 is now part of your network.
Features:
- Ultra low noise input preamps
- Full crosspoint matrix with 48 outputs
- Unlimited input expansion
- TCP/IP Ethernet addressable
- Seamless auto-mixing with PGA™ at the matrix crosspoints
- Simultaneous multi-point 3rd party and native control
- Ultra-low latency
- Automatic primary/secondary detection
- Single CAT6 interconnection carries data, audio and control signals
Specifications:
- Matrix: 48 mix buses with full output matrixing
- ASPEN port: 1Gbs control and audio data between ASPEN units
- Inputs:
- 16 mic/line
- Gain: 0 dB to 56 dB, programmable in 8 dB steps (the analog gain is automatically selected by selecting the input gain)
- Input Level: 0 dBu nominal, max. 20dBu
- Input impedance: 8 k Ohms differential mode, 2 k Ohms common mode
- Phantom power: True 48 Volt
- Dynamic range: 102 dB
- Ein: -127 dBu (20Hz – 20kHz, unweighted)
- THD + noise: 0.01%
- (All inputs are digitally programmable-gain microphone to line level differential inputs. Either side can be grounded or left floating. The cable shield shall be connected to ground.)
- Outputs:
- 1-8 line level (0dBu), 9-12 mic/line level(0, -20, -40 dBu), 13-19 line level (0 dBu), 20-24 mic/line level (0, -20, -40dBu)
- Output level: 0 dBu nominal, max 20dBu
- 0 dBu, channels 1-8
- 0 dBu, -20 dBu, -40 dBu,channels 9-12
- Output impedance: < 50 Ohms, all outputs, all attenuator settings
- Dynamic range: 105 dB
- THD +noise: 0.01%
- Headroom: 20 dB
- (All outputs are floating transformerless differential outputs. Either side can be grounded or left floating. The cable shield shall be connected to ground.)
- Latency:Single-board: 64 + 6 (total number or boards – 1) audio samples = 1.46 ms
- Programmable inputs: 30
- Programmable outputs: 16
- Frequency response: 20 Hz – 21 kHz ± 1 dB
- Monitor output (1/4" headphone jack): Any of the 48 final mixes
- Output power: 50 mW
- Filters: All filters, including the noise reduction filter (NRF), have zero processing delay.
- Noise reduction filters: Adjustable 6 to 35 dB on every input
- Tone control stages: 4 per input channel
- Parametric EQstages: 8 per output channel
- ADFE: 8 per input channel
- Configurableas Static or Dynamic
- Filter types:
- Low Pass:
- Butterworth (6, 12, 18, 24dB/octave)
- Bessel (6, 12, 18, 24 dB/octave)
- Linkwitz-Riley (12, 24 dB/octave)
- Linkwitz-Riley (12, 24 dB/octave)
- High Pass:
- Butterworth (6, 12, 18, 24dB/octave)
- Bessel (6, 12, 18, 24 dB/octave)
- Linkwitz-Riley (12, 24 dB/octave)
- Additional parameters: frequency[Hz]
- Low Shelving:
- Butterworth (6, 12, 18, 24dB/octave)
- Bessel (6, 12, 18, 24 dB/octave)
- Additional parameters: frequency [Hz], boost/cut [dB]
- High Shelving:
- Butterworth (6, 12, 18, 24 dB/octave)
- Bessel (6, 12, 18, 24dB/octave)
- Additional parameters: frequency [Hz], boost/cut[dB]
- Peaking EQ (parametric) Parameters: frequency [Hz], bandwidth[octave], boost/cut [dB]
- Internal Signal Generator:
- White noise: Parameter: level [dBu]
- Pink noise: Parameter: level [dBu]
- Tone (sine wave): Parameters: level[dBu], frequency [Hz]
- Swept sine:
- Sweep modes: single sweep, continuous sweep
- Sweep Waveform: sawtooth (up or down), triangle
- Sweep rate: linear, logarithmic
- Parameters: start frequency [Hz], stop frequency [Hz], level [dBu], sweeptime [sec]
