Yamaha 01-ANTEXEC4-KIT Remote Antenna Kit, 4 Channel

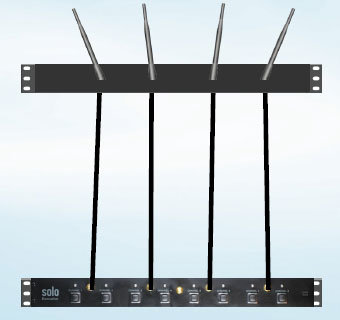

The Revolabs Antenna Extension Kit is designed to extend the Revolabs Solo™ Executive or Executive HD™ System antennas up to six feet away from the Solo Executive or Executive HD Base Station. In this case, the cable with a right angle connector is connected to the Base Station, and the antennas are cabled up to six feet away for better placement on the top or the back of the rack. This may be necessary due to:

• Equipment Configuration– the door of the rack may restrict the placement of the antennas on the front of the Base Station.
• Antenna Visibility– the rack may be facing away from the room where the Revolabs Wireless Microphones are being utilized.
• Building structure or equipment location– the Base Station may be located behind a large metal object, such as an interactive board or panel, restricting antenna visibility.

Image is for illustrative purposes only.

Antenna Extension Kit for 4-channel Solo Executive or Executive HD Wireless Microphone System:

• 6 ft 18 gauge center conductor cable:
• Rack Mount Panel with 4 SMA slots (2 unused)

Note:

Please consult the attached Revolabs HD Microphones One-Sheet to learn more about building a wireless system that includes Revolabs' HD microphones.
