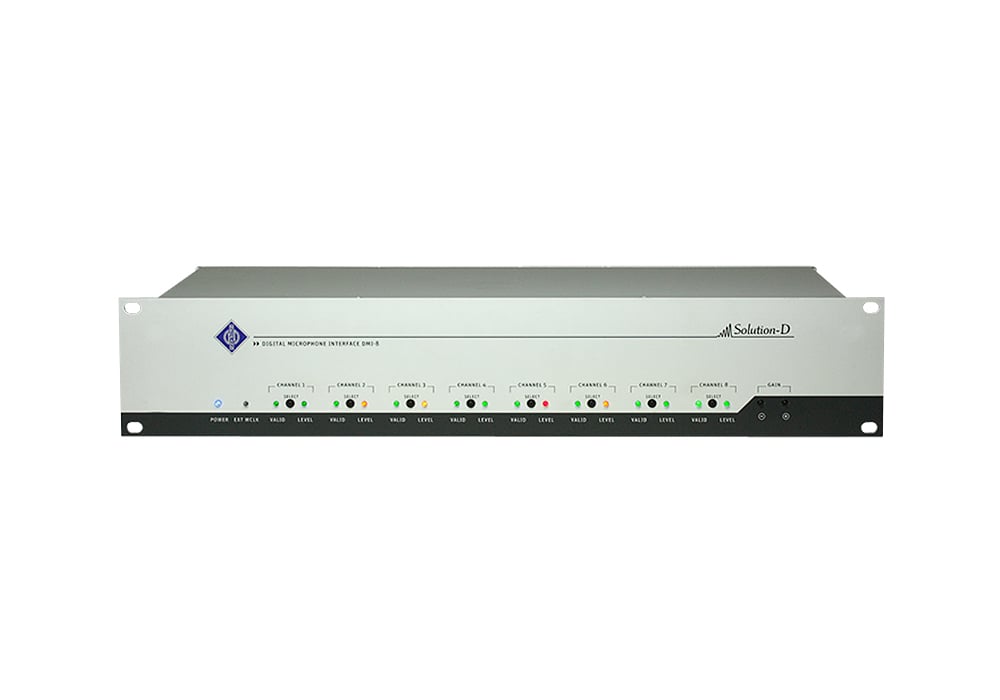

Neumann DMI-8
8-Channel Digital Microphone Interface


Equipment that supports the AES 42 standard can process the output signals of Solution-D microphones directly.
Learn More
Our Price: $3,250.00
Write the first review.
Neumann DMI-8
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Equipment that supports the AES 42 standard can process the output signals of Solution-D microphones directly.  In all other cases, the DMI-8 digital microphone interface is used.  The DMI-8 converts the AES 42 data format supplied by the microphone into an AES/EBU signal.

The DMI-8 is operated via the Neumann RCS remote control software, which is installed on a desktop or laptop computer.  The computer is connected to the DMI-8 via USB port and a USB to RS-485 interface converter.  If a large number of microphones is used, several DMI-8s can be cascaded.  In this case, each DMI-8 can be addressed individually.

In addition to a word clock input and output, the DMI-8 also has an internal word clock generator.  If no master word clock signal (e.g. from a mixing console) is present at the input, the DMI-8 internal word clock is used automatically to synchronize the microphone channels, and the signal is switched to the word clock output.

External commands such as "On Air" (red light) can be controlled via a 9-pin user port.

The DMI-8 is an 8-channel version of the digital microphone interface that considerably simplifies the setup for multichannel applications.

In addition to the proven functions of the two-channel DMI-2:

  • AES 42 to EBU conversion
  • Powering, remote control and synchronization of the microphones without a sample rate converter (AES42, mode2)
  • Automatic word clock or AES 11 synchronization
  • All sample rates, from 44.1 kHz to 192 kHz
  • Complete control and storage of the settings via Mac or PC

The DMI-8 also offers the following features:

  • The capability of cascading up to 128 channels
  • Level meter and gain setting on the front panel, operable even without a computer
  • D-sub 25 outputs with Tascam® and Yamaha® pin assignments
  • Optical ADAT® interface
  • Open architecture for later connection to other multi-channel interfaces and audio networks, such as EtherSound® and MADI

The DMI-8 offers several possibilities for easy integration into audio networks.  The ES100 (DMI-8) module permits integration into EtherSound networks.

Explanation Mode 2:

The DMI performs a frequency/phase comparison between the word clock signal recovered from the mic signal, and the word clock of the DMI.  From the phase deviation thus determined, the DMI calculates a control signal which is transmitted via the remote control data stream to the mic, where it controls the frequency of the internal quartz oscillator.

Description of inputs and outputs:

  • AES42 input: 8 x XLR 3F (Audio data in accordance with AES/EBU (AES3) data format, Digital phantom power (DPP) and remote control data
  • AES/EBU output (AES3 Data format): 2 x SUB-D25 Yamaha® and Tascam® pinout
  • ADAT®: 1 x Toslink, up to 48 kHz
  • GN OUT: 1 x RJ 45 (special serial data format developed by GN, used as a gateway for integration in audio networks. The GN signal will be used by Neumann’s Multi Channel Audio Interface (MCA) for converting of the GN data format to formats such as EtherSound®, MADI, etc. (MCA available as option)
  • Word Clock (AES11): 2 x BNC for internal and external synchronization
  • CTL Bus (RS 485): 2 x RJ 45 ports (connection to computer USB port via the Neumann USB 485 interface converter, connected in parallel for cascading purpose)
  • User port: 9-pin SUB-D, 1 switch function per channel (mute and/or Light 1/2 selectable)

- The AES/EBU signal includes 2 audio channels
- The distribution of the audio data of adjacent mono microphone channels between the audio channels of the corresponding AES/EBU output signal is as follows:

  • Channel 1 AES/EBU out Left:
    - Left: mic 1
    - Right: mic 2
  • Channel 2 AES/EBU out Left:
    - Left: mic 3
    - Right: mic 4
  • Channel 3 AES/EBU out:
    - Left: mic 5
    - Right: mic 6
  • Channel 4 AES/EBU out:
    - Left: mic 7
    - Right: mic 8

Digital stereo microphones are supported at odd numbered AES42 microphone inputs only.  In this case the audio data of the microphone are routed to the left and right channels of the corresponding AES/EBU output.

Delivery range

  • Digital Microphone Interface DMI-8
  • CD with RCS software and USB driver

Technical data:

  • Operating temperature*: 0 °C … +45 °C
  • Storage temperature*: –20 °C … +70 °C
  • Relative humidity*: max. 90 % at +20 °C
    *All values are for non-condensing humidity
  • AES42 inputs: 8x XLR3F, Audio data in accordance withAES/EBU (AES3) data format, Digital phantom power (DPP) Remote control data
  • Phantom power (DPP): +10 V, max. 250 mA per channel, short-circuit proof
  • Remote control data: Pulses (+2 V), superimposed on the phantom power, approx. 750 bits/s or 9,600 bits/s (depending on the microphone)
  • Outputs:
    - 2x SUB-D 25, AES/EBU (AES3) data format, Yamaha® and Tascam® pinout,
    - 1x Toslink, ADAT® format up to 48 kHz, 1x RJ 45, GN format up to 192 kHz, incl. power-out pin: approx. +15 VDC, max.1 A, short-circuit-proof
  • Sampling rates supported: 44,1 / 48 / 88,2 / 96 kHz /176,4 kHz/ 192 kHz
  • Microphone synchronization: AES42 – Mode 2 (synchronous mode) Microphone clock control via PLL
  • DMI-8 Synchronization: automatically to an external word clock or AES11 signal, if present, otherwise the internal word clock generator is activated.
  • Word clock (or AES11) input: BNC
    - Vin  >100 mV at 75 ohms
  • Word clock (or AES11) output  BNC
    - Vout  = Vin (external synchronization)
    - Vout  approx. 1.5 V at 75 ohms (internal word clock generator)
  • Internal word clock generator: 44,1 / 48 / 88,2 / 96 kHz / 176,4 / 192 kHz, Accuracy ±25 ppm
  • Indicators: Power, Ext Word Clock, Valid,Level (microphone)
  • Control elements: 8x Channel SelectGAIN +/–
  • Control bus: 2 x RJ 45 ports; connection to computer USB port via the Neumann USB 485 interface converter; connected in parallel for the purpose of cascading. RS 485 with additional power-out pin (approx. +11.3 V, max. 500 mA)
  • Device address (ID): 0 to 15, adjustable viacoding switch on the backof the device
  • User port: 9-pin sub-D, 1 switch function per channel (Mute and/or Light 1/Light 2 selectable)
  • Power supply: 90 V to 240 V; 50/60 Hz
  • Power consumption: < 55 VA
  • Dimensions: 483 mm W x 88 mm H x 210 mm D
  • Weight: approximately 2.8 kg
