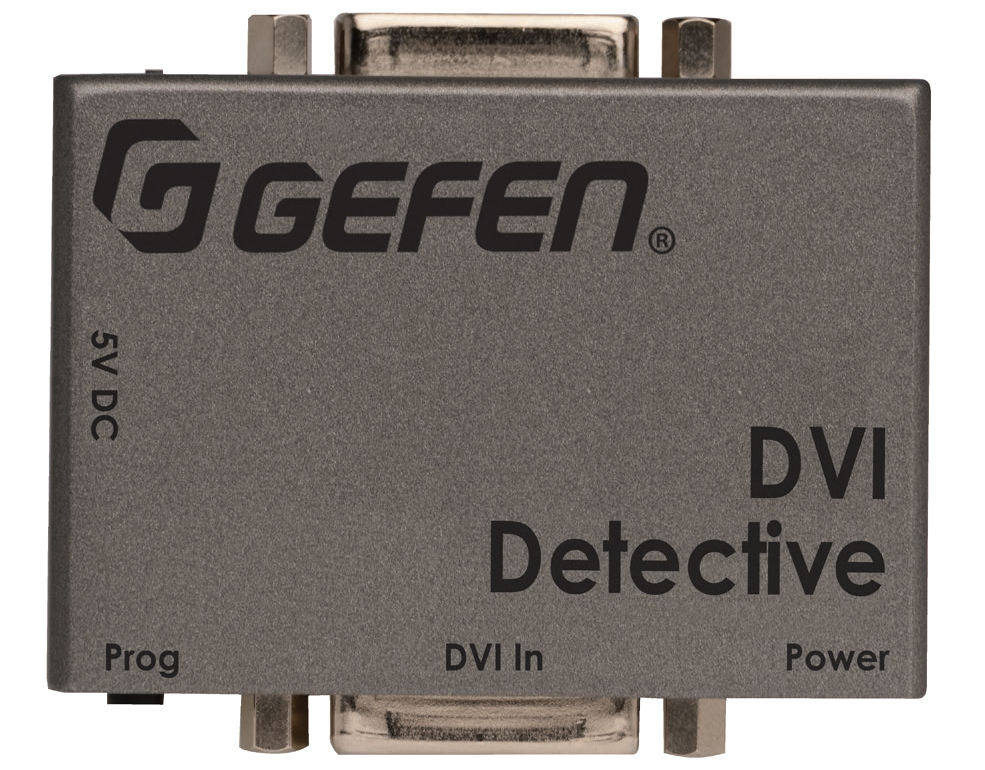

Gefen Inc EXT-DVI-EDIDN
DVI Detective

OUR PART #:  EXT-DVI-EDIDN

When displays are switched away or disconnected and then subsequently reconnected, EDID information can be lost...
Learn More
Our Price: $81.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DVI-EDIDN
Qty:
In Stock

Similar Products

When displays are switched away or disconnected and then subsequently reconnected, EDID information can be lost, which can cause the computer to then lose the ability to display the image properly. That's where Gefen's  EXT-DVI-EDIDN DVI Detective comes in. This useful device solves this problem by memorizing the EDID information.  It accomplishes this thru a simple programmming process. Once it has the display's EDID memorized, it can then be placed over the output of the computer's video port, where it fools the computer into recognizing that a display is present, even when the display is switched away to another computer.

*Notes:
For custom EDID programming please contact your Sales Pro for more details.
This product does NOT pass HDCP. Please use the Gefen EXT-DVI-EDIDP (sold separately) for applications requiring HDCP support.
While this unit works with both DVI-D and VGA formats, it does NOT convert analog VGA to DVI or vice versa.
The included DVI cable does NOT support analog VGA.

Gefen EXT-DVI-EDIDN DVI Detective Includes:

  • (1) VGA Extender S Sender Unit
  • (1) VGA Extender R Receive Unit
  • (1) 6-foot VGA cable (M-F)
  • (1) 5V DC power supply

Gefen EXT-DVI-EDIDN DVI Detective Features:

  • Quick and easy way to store EDID information from any DVI display
  • Provides a virtual EDID to maintain active monitor status when switching away from a source
  • Easier to use: External buttons control the programming of an EDID and the protection of the memory inside the unit
  • Keeps computer systems from deactivating inactive DVI ports
  • No power required after initial programming step
  • Custom Resolutions are available for specific devices
  • Buttons on the outside for EDID programming and write-protection
  • Use with Gefen DVI extenders to obviate the necessity for DDC CAT-5 lines in computer systems
  • Supports resolutions up to 1920x1200, 2K, and 3840x2400 (Dual Link)

Gefen EXT-DVI-EDIDN DVI Detective Specifications:

  • Maximum Pixel Clock: 2x 165 MHz
  • Video Input Connector: (1) DVI-I 29-pin, female
  • Video Output Connector: (1) DVI-I 29-pin, female
  • Operating temperature range: +5 to +45 deg. Celsius
  • EDID Memory Size: 256 Bytes
  • Power Supply: 5V DC (needed for programming only)
  • Power Consumption: 5 Watts (max)
  • Dimensions: 2.6" W x 1.2" H x 1.7" D
  • Shipping Weight: 1 lb
