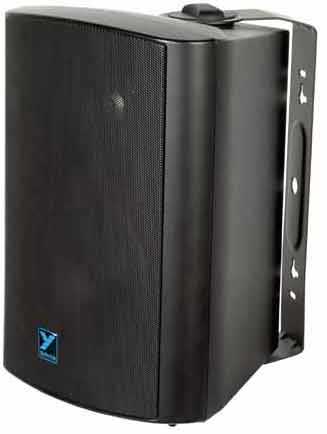

Yorkville C130/70
Speaker, 100 Watts, 70V, 6.5" Woofer, 1" Tweeter

OUR PART #  C130/70

Our Price: $119.99
List Price: $159.99
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Coliseum C130 is a compact loudspeaker in the 100-watt range with a 6 1/2-inch driver and 1 inch Mylar tweeter. 70-volt multi tapped transformer version designed for fixed installation systems (C130/70). The integrated 70-volt ‘matching transformer’ allows multiple C130/70’s to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass).

The trapezoidal shape makes the C130 ideal for install or array mounting in tight locations. Weather resistant plastic enclosure and Mylar components mean the C130 can be used indoors or outdoors, ideal for foyers, patio systems for music and paging systems. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they may be the most versatile and cost-effective solution for small installations, or as a repeater or fill cabinet in larger venues.

Specifactions:

  • System Type Two Way
  • Active or Passive Passive
  • Program Power (Watts) 100
  • Nominal Impedance: 70 volt
  • Sensitivity (dB @1Watt/1m) 96
  • Max SPL (dB) 116
  • Frequency Response (Hz +/- 3db) 75 to 20000
  • Driver Configuration 6 1/2 inch / 1 inch dome tweeter
  • HF Driver(s) 1 inch Mylar Dome Tweeter
  • LF Driver(s) 6 1/2 inch
  • Inputs - 1/4" Jacks Yes - Two
  • Inputs - Binding Post Yes
  • Taps: 6W/12.5W/25W
  • Included Hardware Mounting Bracket
  • Optional Covering / Finishes Available Black or White (C130W)
  • Dimensions (DWH xbackW, inches) 11.5 x 8.5 x 7.5 x 3.5
  • Dimensions (DWH xbackW, cm) 29 x 22 x 19 x 9
  • Weight (lbs/kg) 8.2 / 4
  • * Specifications subject to change without notice

Yorkville C130/70
Speaker, 100 Watts, 70V, 6.5" Woofer, 1" Tweeter

OUR PART #  C130/70

Product Information:

The Coliseum C130 is a compact loudspeaker in the 100-watt range with a 6 1/2-inch driver and 1 inch Mylar tweeter. 70-volt multi tapped transformer version designed for fixed installation systems (C130/70). The integrated 70-volt ‘matching transformer’ allows multiple C130/70’s to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (6W, 12.5W, 25W or bypass).

The trapezoidal shape makes the C130 ideal for install or array mounting in tight locations. Weather resistant plastic enclosure and Mylar components mean the C130 can be used indoors or outdoors, ideal for foyers, patio systems for music and paging systems. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they may be the most versatile and cost-effective solution for small installations, or as a repeater or fill cabinet in larger venues.

Specifactions:

  • System Type Two Way
  • Active or Passive Passive
  • Program Power (Watts) 100
  • Nominal Impedance: 70 volt
  • Sensitivity (dB @1Watt/1m) 96
  • Max SPL (dB) 116
  • Frequency Response (Hz +/- 3db) 75 to 20000
  • Driver Configuration 6 1/2 inch / 1 inch dome tweeter
  • HF Driver(s) 1 inch Mylar Dome Tweeter
  • LF Driver(s) 6 1/2 inch
  • Inputs - 1/4" Jacks Yes - Two
  • Inputs - Binding Post Yes
  • Taps: 6W/12.5W/25W
  • Included Hardware Mounting Bracket
  • Optional Covering / Finishes Available Black or White (C130W)
  • Dimensions (DWH xbackW, inches) 11.5 x 8.5 x 7.5 x 3.5
  • Dimensions (DWH xbackW, cm) 29 x 22 x 19 x 9
  • Weight (lbs/kg) 8.2 / 4
  • * Specifications subject to change without notice
