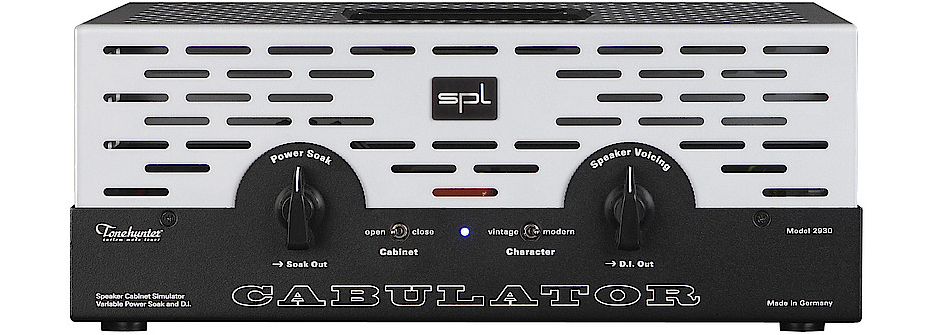

SPL Sound Performance Lab CABULATOR
DI Box, Power Soak, Cab Sim Model 2930


Our Price: $799.00
List Price: $899.00
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Cabulator combines three main features for e-guitar amplifiers: power soak, speaker simulation, and D.I. output. Thanks to the variable power soak you can play any amp loud without being loud – with headphones even inaudible if necessary.

The Cabulator’s fully analog design excludes latencies. It thereby gives the guitarist a direct response with an authentic punch. Even the most subtle guitar amp nuances are reproduced as precisely as harmonics structures and dynamic response of a cabinet.

You always get a top signal in recording quality in seconds – both for direct recording and for a live mix.


  • With the Cabulator a guitar amp can always be played loud without necessarily being loud.
  • Fully analog construction for authentic sonic quality and direct, latency-free playability.
  • Variable power soak without dynamic loss or damped highs.
  • Passive power soak: the power soak functionality and regulation is passive and can also be used without power connection.
  • The transformer-based design maintains the harmonic content of a tube amp.
  • Sound processing is independent from absolute volume levels, which means that no recording room is necessary and ear-saving work is possible everywhere and at any time.
  • Sonically much more flexible than a fixed cabinet/mike set in that different sound characteristics can be simulated.
  • Multiple guitar tracks can be “stacked” – the doubled layers become “phatter”. In the process, there will not be any thinning effect from phase shifts as with digital simulation.
  • 100 Watts power soak: the power amp‘s distortion may, as with cabinets, be integrated into an authentically distorted sonic design.
  • Resulting recorded sounds are independent from room characteristics.
  • Signals for live mixes are at recording quality level and free from crosstalk from other sound sources.
  • The guitarist can play in the control room to listen and react to the playback directly.
  • Significantly less time spent and much more efficiency and convenience in equipment setup, preparation, and working with sound variations.
  • Working procedures and connections follow customary standards of amp and cabinet sets.
  • The D. I. OUTPUT is transformer-balanced and provides for galvanic insulation.
  • Connections from the D. I. OUTPUT can be both balanced or unbalanced.


Speaker In: 1/4" TRS jack
Impedance: 8?Ohm
Max. input load: 100?W RMS, 200?W peak

Soak output: 1/4" TRS jack
D.I. output: 1/4" TRS jack, transformer balanced
Impedance: unbalanced ca. 40 Ohm, balanced ca. 80 Ohm
Max. output level: +4 dBu
Signal to noise ratio: -85?dBu (unweighted)

Power Supply
Power connection: external power supply for voltages from 100-250 volts, 9?V DC, 200 mA, 2,1 mm DC plug
Power consumption: 0,5?VA
Fuse (internal): 100 – 250 V AC, 100 mA slow blow

Dimensions & Weight
Height x width x depth: 134 x 300 x 207 mm
Weight: 3?kg/6,61 lbs
