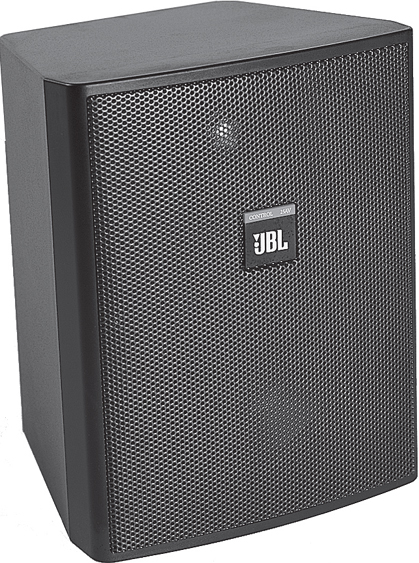

JBL Control 25AV-LS
2 Way Compact Shielded Loudspeaker for Life & Safety Applications


The JBL Control® 25AV-LS is built on the same platform as their popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.
Learn More
Our Price: $195.00
List Price: $243.60
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


JBL Control 25AV-LS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL Control® 25AV-LS is built on the same platform as their popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems.  The Control 25AV-LS utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker.  Premium performance capability and even coverage ensures excellent sound quality throughout the listening area.  A top-quality, low saturation transformer, enables the loudspeaker to be used on either 70 volt or 100 volt distributed speaker lines, with similar fidelity performance to the 8 ohm bypass position.

The patented InvisiBall® mounting method is simple to install, aims easily, and provides a high degree of theft deterrence.  The cabinet accepts a variety of paints to match any décor.  Weather resistance is maximized by utilizing an aluminum grille featuring polyester powder coating and liquid-tight MTC-PC2 terminal covers.

Coating the woofer cone in polypropylene and terminating its circumference in JBL's WeatherEdgeTM, a seamless, butyl rubber extension of the woofer surround, protects critical transducer elements.  The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance.  Nickel/zinc rust-resistant terminals ensure a secure input connection.


  • Control 25AV-LS loudspeaker
  • 1 pc MTC-PC2 input panel cover
  • Invisiball mounting base
  • 6 mm x 100 mm Invisiball hex wrench

JBL Control 25AV-LS Features:

  • UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems
  • Extremely Smooth Frequency Response
  • Aluminum Grille with Polyester Powder Coating for Enhanced Durability
  • 60 Watt Transformer for 70V or 100V Lines, with 8 ohm Bypass
  • SonicGuard™ Overload Protection
  • 130 mm (5-1/4") Polypropylene Coated Woofer, 10 mm (3/4") Titanium Coated Horn-Loaded Tweeter
  • Includes InvisiBall® Mounting Hardware and Sealed Input Panel Cover
  • Captive Screw-Down Input Terminals
  • 110° x 85° High-Frequency Horn

JBL Control 25AV-LS Specifications:

  • Frequency Range (-10 dB) (half-space): 90 Hz - 20 kHz
  • Power Capacity*:
    • 200 Watts Continuous Program Power
    • 100 Watts Continuous Pink Noise
  • Nominal Sensitivity: 87 dB
  • Nominal Coverage Angle*: 110° x 85° (1kHz to 16kHz)
  • Directivity Factor (Q): 4.8 (500 Hz to 4kHz)
  • Directivity Index (DI): 6.5dB (500 Hz to 4kHz)
  • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113dB peak
  • Rated Impedance: 8 ohms (in bypass mode)
  • Transformer Taps: 60W 30W, 15W, (& 7.5W @ 70V)
  • LF Driver: 130mm (5.25") with polypropylene coated paper cone with WeatherEdge surround, 25 mm (1") voice coil on kapton former
  • HF Driver: 20mm (0.75") titanium coated PEI
  • Input Connectors: Captive screw-down terminals, zinc-plated copper base, nickel-plated metal screws/washers, accepts up to 9mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
  • Cabinet Material: High Impact Polystyrene, (materialsrated UL-94HB)
  • Grille: Aluminum with polyester powder coating
  • Safety Agency: UL1480-UUMW Listed, UL2043, NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
  • Dimensions: 9.3" H x 7.4" W x 6.3" D (236 x 186 x159 mm)
  • Net Weight: 8.4 lbs. (3.8 kg) each
  • Shipping Weight: 19 lbs. (8.6 kg) per pair

* Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program power is a conservative expression of the system’s ability to handle normal speech and music program material, and is defined as 3 dB above the Continous Pink Noise Rating.
