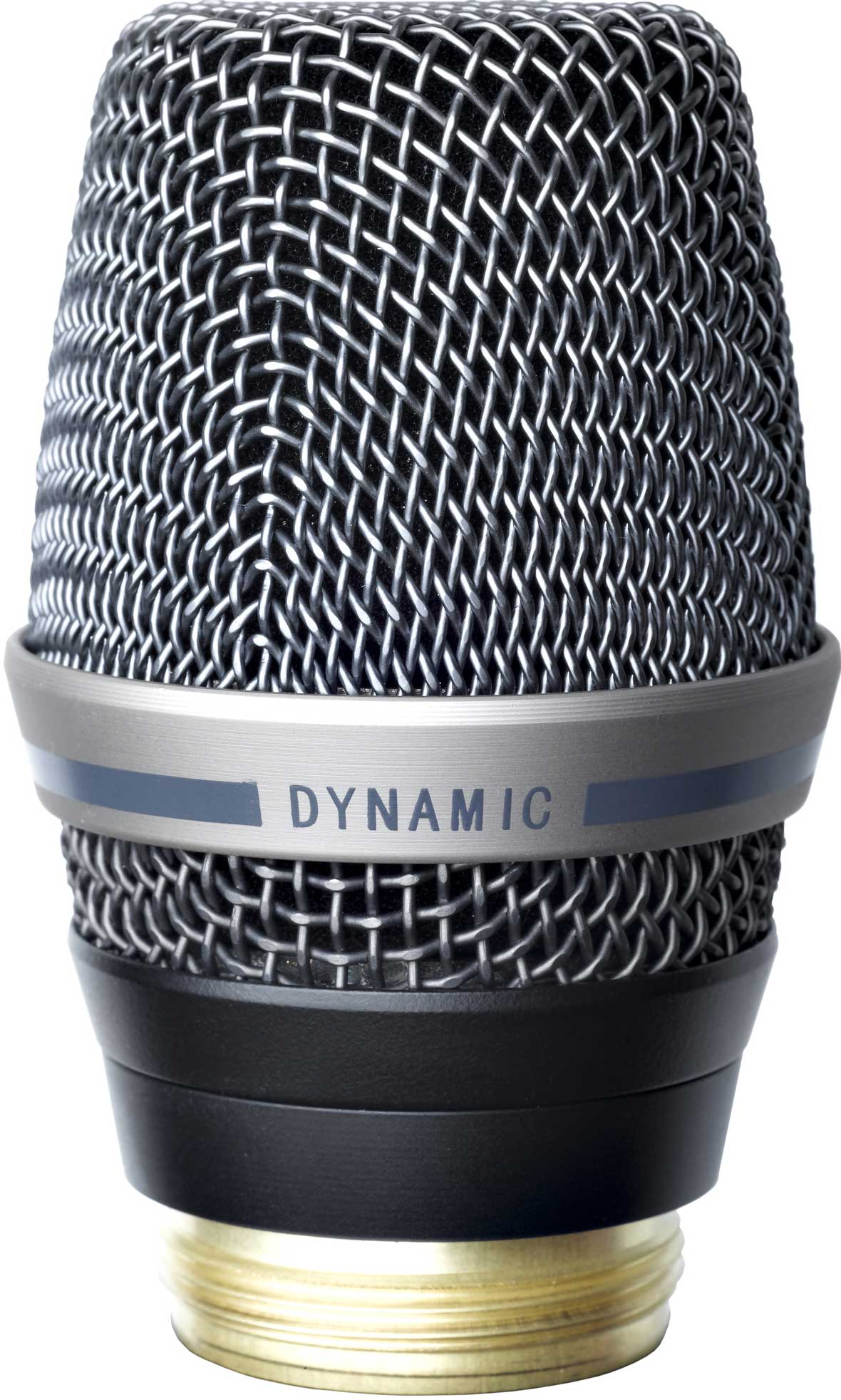

AKG D7 WL1 Supercardioid Dynamic Microphone Capsule for HT4500

This D 7 microphone capsule is for use with the AKG WMS 4500 wireless system.

AKG's new reference dynamic microphone delivers high end performance and noble sound in every studio and on every stage. The new Laminated Varimotion diaphragm deep-drawing process allows the diaphragm itself to be fine-tuned with no extra tuning resonators. This leads to a quantum leap in audio performance under each surrounding conditions and sound volume. D7 creates that subtle and opened sound in all frequency ranges condenser mics are famous for, but it also has the powerful resonance from a dynamic microphone.

Specifications

• Polar Pattern: Supercardioid
• Frequency Range: 70 to 20,000 Hz
• Sensitivity: 2.6 mV/Pa (-52dBV)
• Max. SPL: 147/156 dB SPL
• Equivalent Noise Level: 18 dB-A (IEC 60268-4)
• Signal/Noise Ratio (A-weighted): 76 dB
• Impedance: < =600 ohms
• Recommended Load Impedance: >=2000 ohms
• High Pass Filter: 80 Hz, always active
