Lowell LVR14-1421
14 RU Vari-Rack (14-21"D) Custom Fit Rack

OUR PART #:  LVR14-1421

The VARI-RACK® is engineered for versatility as it sports an innovative design that allows the depth to be selected during set-up (anywhere between 14" and 21"D).
Learn More
Our Price: $325.85
List Price: $479.80
You save 32%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Lowell LVR14-1421
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

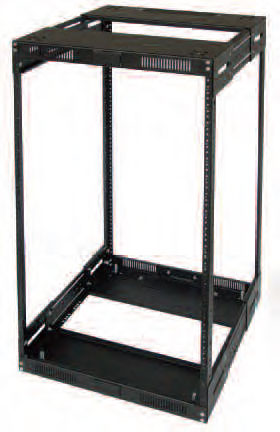

The VARI-RACK® is engineered for versatility as it sports an innovative design that allows the depth to be selected during set-up (anywhere between 14" and 21"D). The four corner post rails have a scale printed in rack unit increments to facilitate trimming if a custom height is desired. And the narrow (19.214") width creates a slim footprint for mounting standard 19"W EIA equipment in narrow spaces. An assortment of options enables the VARI-RACK to adapt to a variety of applications. It’s the ideal solution for rackmounted equipment in custom cabinetry or credenzas, under counters or desks, or in any narrow or shallow open area.

Robust Frame: The VARI-RACK will support loads up to 400 lbs. Corner post mounting rails are 11-gauge steel tapped 10-32. Base and top sections are 14-gauge steel. Rack models with a height of 30, 38 or 44 rack units include two side support brackets for torsional rigidity.

Assembly: Although the rack ships knocked down, the base and top are pre-assembled to speed installation — only the depth adjustment is needed. Adjustment brackets are printed with a scale (inches, millimeters, rack units) and can be pinned in EIA increments or secured along a slot to accommodate custom sizes. Includes 5/16" hex nuts and 10-32 x 1/2" flathead screws, and 10-32 hex nuts for pinning EIA depths.


  • Removable top knockout panel with .5" knockout for wireless antennaes, .75"-.5" and 1.5"-1" knockouts for conduit.
  • Openings in top and base are determined by pinning depth of inner adjustment brackets.
  • Each top and base section has a vented front for natural heat dissipation. There is also a center cutout (with cover) to mount low voltage Decorastyle switches (order switches separately).
  • Ships knocked down for freight economies.
  • Made in the USA with 100% certified US steel. Black finish.


  • Rack Units:  14
  • Panel Space:  24.625"
  • Overall Height:  28.341"
  • Inside Side Height:  20.431"
  • Overall Width:  19.214"
  • Overall Depth:  14-21"
  • Side Support Brackets:  0
  • Corner Mtg Rails:  4
