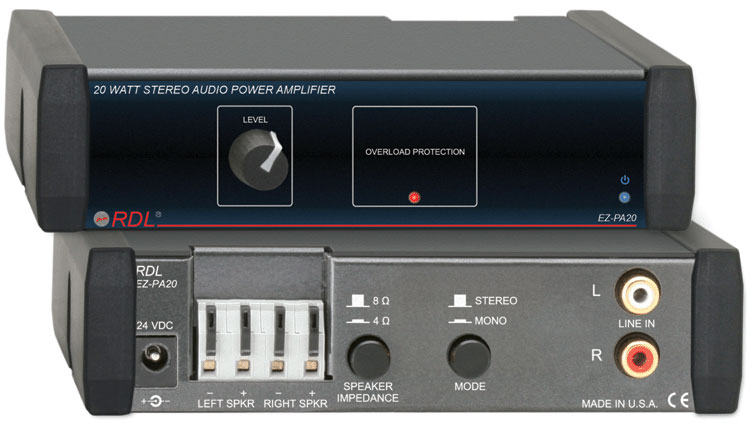

Radio Design Labs EZ-PA20
10W RMS/Channel @ 8 Ohms Stereo Amplifier

OUR PART #  EZ-PA20

Our Price: $134.43
List Price: $179.83
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

Radio Design Labs' EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than a standard amplifier. The outputs drive 4 or 8 ohm speakers.

The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems. Power supply included.

Radio Design Labs EZ-PA20 Features:

  • Audio Amplifier with Front-Panel Level Control
  • 10 Watts RMS Per Channel into 8 Ohms
  • 8 Watts RMS Per Channel into 4 Ohms
  • Switch-Selectable Load Impedance on Rear Panel
  • Unbalanced Line Input on RCA Jacks
  • Switch-Selectable Mono or Stereo Mode
  • Integral Overload Limiter with LED Indicator
  • Limiter Controls Overloads from Clipping

Radio Design Labs EZ-PA20 Specifications:

  • Input: > 10 kOhm, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 Wout), +22 dBV max.
  • Gain: Off to 32 dB
  • Outputs (2): Left and Right, 10 Watts RMS into 8 Ohms per channel or 8Watts RMS into 4 Ohms per channel, switch-selectable output impedance
  • Frequency Response: 35 Hz to 20 kHz (±1.5 dB, 10 Watts)
  • THD+N: < 0.25%
  • Crosstalk: < -68 dB (1 kHz)
  • Phantom: Switch-selectable 24 V (IEC 1938: 1996-12)
  • Noise: < -70 dB (below 10 Watts)
  • 24 Vdc power supply current: 160 mA (idle), 1000 mA (max.) Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 5.75" W x 5" D (14.6 x 12.7 cm)
  • Mounting size: 1/3 rack width
