Radio Design Labs EZ-VMD2
1x2 Video Distribution Amp VGA/XGA


Our Price: $172.06
List Price: $230.16
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

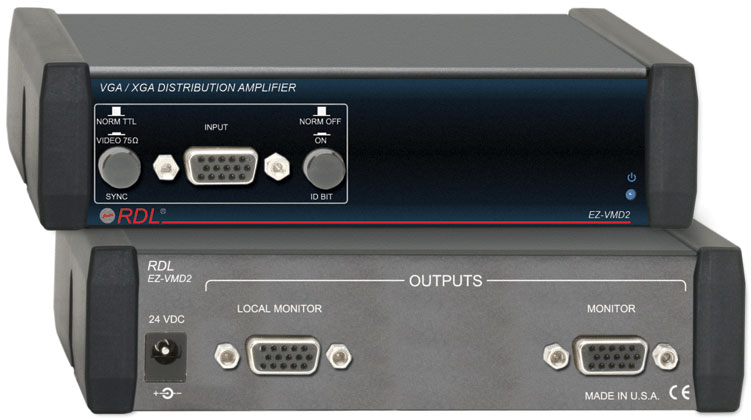

The EZ-VMD2 is a high-resolution computer video distribution amplifier with two outputs. The input has an associated ID BIT switch to assure compatibility with various computers. Sync is front-panel switch-selectable between standard TTL or 75 O video. One of the two outputs is indivually buffered for driving the computer monitor.

The second output is driven by separate output amplifiers. Both outputs provide flat, wideband response. All switched functions are easily accessible on the front panel.

The EZ-VMD2 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, stores and commercial A/V systems. Power supply included.


  • Input and Outputs on HD15 Female Connectors
  • Two Individually Buffered Outputs
  • Wide RGB Bandwidth > 400 MHz Loaded
  • High Resolution Compatibility VGA through QXGA
  • Reliable Full-Size Switches for Switched Functions
  • Switch-Selectable TTL or Video 75 O Input Sync
  • Front-Panel Input ID Bit Selection
  • DC RGB Coupling, Output Polarity and Offset Follow Input


  • Input: VGA - QXGA RGBHV or RGB with combined sync
  • Outputs (2): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT), Monitor (1, separately buffered)
  • Gain: Unity
  • Video bandwidth: > 400 MHz
  • Video impedance: 75 O (Input and output)
  • Sync (HV) input: 500 O TTL or 75 O Video (Switch-selectable), 0.7 V to 5 V p-p
  • Sync (HV) output: 5V TTL
  • Sync (HV) Propogation delay: < 4 nS typ.
  • Sync (HV) Rise time: < 4 nS typ.
  • Sync (combined): Output follows input
  • Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
  • 24 Vdc power supply current: 70 mA (idle), 80 mA (max.)  Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
  • Mounting size: 1/3 rack width
