Radio Design Labs EZ-VM22E
Switcher, 2x2 VGA/XGA

OUR PART #  EZ-VM22E

Our Price: $192.80
List Price: $257.91
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

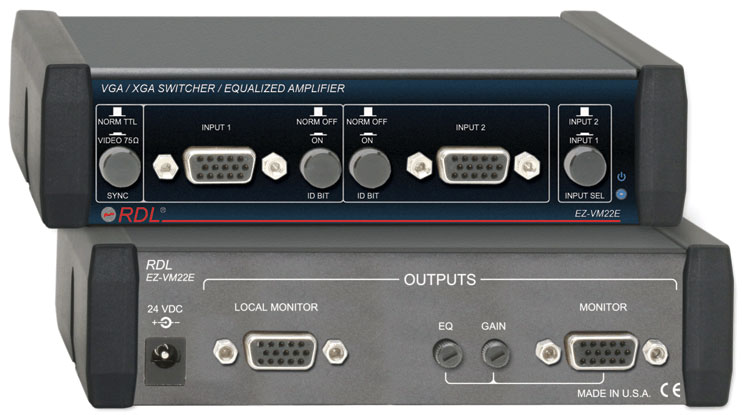

The EZ-VM22E is a high-resolution computer video source selector and distribution amplifier with two inputs and two outputs. A front-panel switch selects between the inputs. Each input has an associated ID BIT switch to assure compatibility with various computers. The sync for input 1 is front-panel switch-selectable between standard TTL or 75 O video. One of the two outputs is indivually buffered for driving the computer monitor.

The second output is driven by separate output amplifiers that include rear-panel gain and equalization trimmers that provide adjustable compensation for quality monitor cable lengths exceeding 100 m (300 ft). All switched functions are easily accessible on the front panel. Input switching is fully solid state for long-term reliable immunity from switch noise and the bandwidth limitations of mechanical switches.

The EZ-VM22E is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, stores and commercial A/V systems. Power supply included.

Features:

  • Inputs and Outputs on HD15 Female Connectors
  • Two Front-Panel Switch-Selectable Inputs
  • Wide RGB Bandwidth > 400 MHz Loaded
  • High Resolution Compatibility VGA through QXGA
  • Solid-State Switching of Video and Sync Signals
  • Reliable Full-Size Switches for Switched Functions
  • Switch-Selectable TTL or Video 75 O Input Sync
  • NORM ID BIT Connects LOCAL MONITOR and INPUT 1 ID
  • Front-Panel ID Bit Selection for Each Input
  • DC RGB Coupling, Output Polarity and Offset Follow Input
  • Rear-Panel GAIN and EQ Peaking Trimmers

Specifications:

  • Inputs (2): VGA - QXGA RGBHV or RGB with combined sync
  • Outputs (2): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT 1), MONITOR (1, with GAIN and EQ trim)
  • Gain: Unity (LOCAL MONITOR output), Unity to +6 dB (MONITOR output)
  • Equalization (peaking): None (LOCAL MONITOR output), Adjustable 0 to +8 dB at 50 MHz (MONITOR output)
  • Video bandwidth: > 400 MHz
  • Output offset: ±5 mV typ. (75 O load)
  • Video impedance: 75 O (Input and output)
  • Sync (HV) input: 500 O TTL or 75 O Video (Switch-selectable), 0.7 V to 5 V p-p; Sync (HV) output: 5V TTL
  • Sync (HV) Propogation Delay: < 4 nS typ.
  • Sync (HV) Rise Time: < 4 nS typ.
  • Sync (combined): Output follows input
  • Bit Control: Switch-selectable (individual selector per input, pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
  • 24 Vdc power supply current: 70 mA (idle), 80 mA (max.)  Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
  • Mounting size: 1/3 rack width
