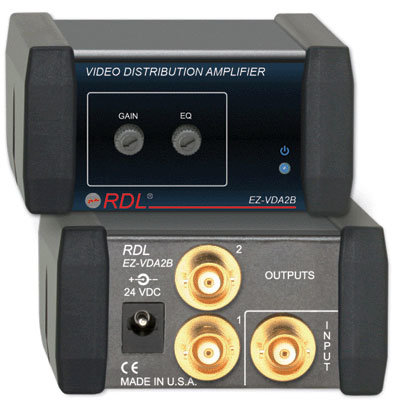

Radio Design Labs EZ-VDA2B
1x2 Video Distribution Amp BNC

OUR PART #  EZ-VDA2B

Our Price: $95.97
List Price: $128.37
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The EZ-VDA2B is a composite video distribution amplifier with two outputs. The input and outputs are all 75 O on BNC connectors. If the outputs are connected to long coaxial cables (typically 100 to 1000 feet) the front-panel gain and equalization trimmers may be adjusted to restore picture clarity. The wide amplifier bandwidth supports high quality video distribution.

The EZ-VDA2B is used in stores, houses of worship, restaurants, clubs, security and commercial A/V systems. Power supply included.

Features:

  • Composite Input to Two Composite Outputs
  • Front-Panel GAIN and EQ Trimmers
  • Operation with NTSC or PAL Signals
  • 75 O Terminated Input
  • Input and Outputs on Gold-Plated BNC Jacks
  • Wide Bandwidth > 400 MHz

Specifications:

  • Input: 75 O on BNC jack
  • Input level: 1 V p-p nominal
  • Gain: Unity to +6 dB (adjustable)
  • Bandwidth: > 400 MHz
  • Coupling: AC
  • Differential Gain: < 0.1%
  • Differential Phase: < 0.1 degree
  • Equalization: Flat to +7 dB @ 50 MHz (adjustable)
  • Residual Noise: < -90 dB (referenced to 1 V p-p)
  • Outputs (2): 75 O source-terminated on BNC jacks, 1 V p-p nominal (terminated)
  • 24 Vdc power supply current: 20 mA (idle), 30 mA (max.)  Power supply included.
  • Power supply input voltage: 100 to 240 VAC
  • Warranty: 3 Years; contact RDL technical support department for assistance
  • Case dimensions: 2.9” (7.4 cm)W x 3” (7.6 cm)D
  • Mounting size: 1/6 rack width
