Studio Technologies M71 Control Console for s 76D, 76DA, 760-Series

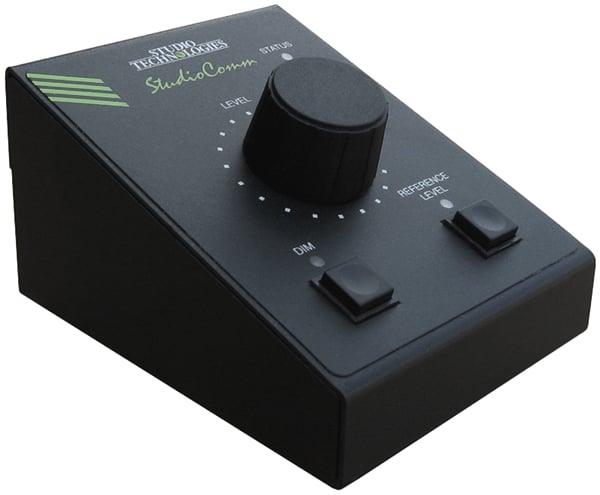

Model 71 is a compact command center for use with Models 76, 76B, 76D, or 76DB Central Controllers. Provides additional user locations with the most frequently desired functions: level adjustment, reference level, and dim. Up to three Model 71s can be connected to, and powered by, a central controller.

Specifications:

• Application: up to three Model 71 Control Consoles can be connected to a Model 76, Model 76B, Model 76D, or 76DB Central Controller
• Power: 12 volts DC, maximum current 35 milliamperes, provided by central controller
• Control Data:
  • Type: RS-485
  • Data Rate/ Format: 115.2 kbit/s, 8-N-1
  • Connector: 9-pin D-subminiature female
• Dimensions (Overall):
  • 3.20 inches wide (8.1 cm)
  • 2.20 inches high (5.6 cm)
  • 4.10 inches deep (10.4 cm)
• Weight: 0.8 pounds (0.4 kg)
