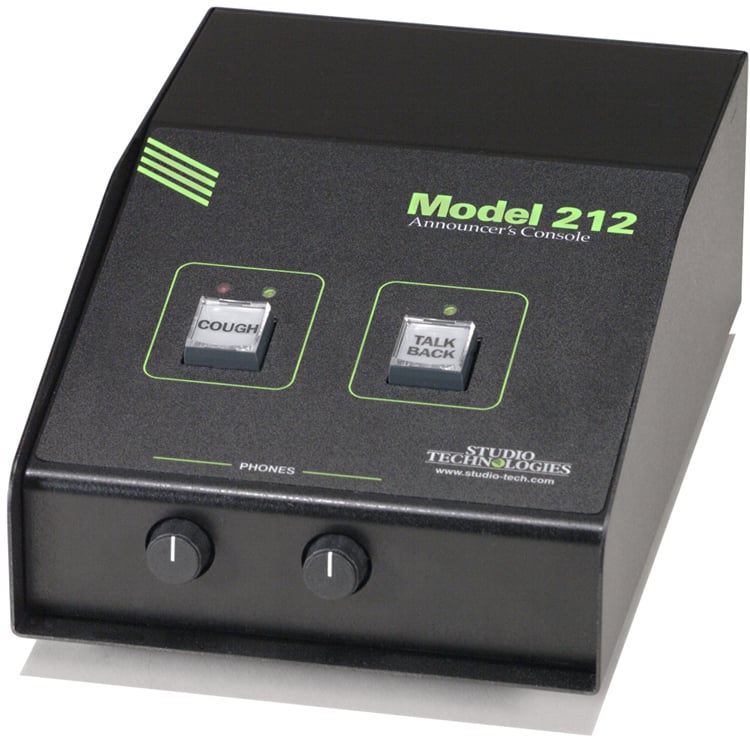

Studio Technologies MODEL-212
Announcers Console

OUR PART #  MODEL-212

Our Price: $989.43
List Price: $995.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Model 212 Announcer's Console is an audio control "hub" for announcers, commentators, and production personnel that features digital audio input and output resources. The broadcast-standard interfaces allow direct integration of the table-top unit into contemporary "all-digital" environments.

Flexible Setup
Two pushbutton switches—Main and Talkback—operate under microprocessor control to offer unmatched flexibility and "click-free" audio routing. The Main button controls the main output audio channel with operating modes that include push-to-mute (cough), push-to-talk, and latching. The Talkback button controls an audio channel that provides talent-oriented cue signals to production personnel. Both channels are formatted into an AES digital audio "stream" that is routed to two BNC interfaces: an AES3id-compliant output and a bidirectional digital interface for direct integration with Riedel intercom systems. For non-on-air applications a special feature set referred to as "production" mode can be enabled. Simple customization of the button labels ensures the user is presented with an easy-to-use set of controls and indicators.

Superior Audio
Featuring a studio-inspired low-noise/low-distortion preamplifier design, adjustable gain, and 48 volt phantom power, the Model 212 is compatible with balanced dynamic and condenser microphones. A sophisticated compressor circuit controls the dynamic range of the audio signal from the microphone preamplifier to ensure the main output offers faultless performance as the on-air or other primary audio feed.

Powerful Monitoring
The headphone output's circuitry provides high output levels with very low distortion and noise. The user can monitor audio channels from among the three digital audio sources: the AES3id input, the bidirectional digital interface, and an optionally implemented AES3 input. Each source can be individually assigned to the left, right, or both channels of the binaural headphone output. Two rotary controls allow the user to adjust the headphone output levels.

Features:

  • Microphone preamp with selectable gain and 48 volt phantom power
  • Two digital audio input channels
  • Two pushbutton switches offer programmable "click-free" audio path control
  • Digital audio main and talkback output channels
  • Digital interfaces directly compatible with unbalanced AES digital audio signals
  • Bidirectional digital interface for direct integration with Riedel® intercom systems
  • Stereo headphone monitoring of selectable sources
  • Two rotary headphone output level controls
  • Microcontroller-directed audio routing
  • All configuration switches accessible via the bottom of the enclosure

Specifications:

General Audio:
Frequency Response: < –0.1 dB at 20 Hz, –1 dB at 18 kHz, mic in/main out
Distortion (THD+N): 0.025%, measured at 1 kHz, mic in/main out
S/N Ratio: 71 dB, referenced to –46 dBu mic in/ –14 dBFS out
Common Mode Rejection Ratio: 68 dB at 60 Hz

Connectors:
Mic In: 3-pin female XLR-type
AES3id Out, AES3id In, Bidirectional Interface: 75 ohm BNC
Headphone Out: ¼-inch 3-conductor phone jack 24 Vdc Power In: 2.1 x 5.5 mm coaxial power jack

Spare Connector Locations: 2, allows one or two Neutrik NC*D-L-1 connectors to be installed (*=3F, 3M, 5F, 5M, 6F, 6FS, etc.)

Digital Inputs/Outputs:
A/D, D/A Converters: 24 bit, 100 dB dynamic range
Sampling Rate: internal clock source 48 kHz, external clock source 32 to 96 kHz
AES3id In: unbalanced, transformer-coupled
    Impedance: 75 ohms
AES3id Out: unbalanced, transformer-coupled
    Impedance: 75 ohms
Bidirectional: unbalanced transformer-coupled
    Impedance: 75 ohms
AES3 In: balanced, transformer-coupled
(via optional connector)
    Impedance: 110 ohms
AES3 Out: balanced, transformer-coupled
(via optional connector)
    Impedance: 110 ohms

Microphone Input/Preamplifier:
Type: electronically balanced
Input Impedance: 2 k ohms, nominal
Gain Range: 10 to 50 dB, nominal, adjustable in 10 dB steps
Compatibility: dynamic or phantom-powered mics
Phantom Power: 48 Vdc, nominal, meets IEC 61938

Compressor:
Threshold: switchable –14 dBFS/–4 dBFS
Attack/Release Time: 2 mSec/100 mSec, nominal
Slope: 5:1, nominal

Optional Line Inputs: 2
Type: balanced, transformer-coupled
Impedance: 10 k ohms, nominal
Nominal Level: +4 dBu

Headphone Output: 1, binaural (stereo)
Compatibility: intended for connection to mono or stereo headphones or headsets with nominal impedance of 100 ohms or greater
Type: voltage driver
Maximum Output Voltage: 8 Vpp, 150 ohm load

Auxiliary Relay:
Function: software configurable
Contacts: 2, form C (Common, Normally Closed, Normally Open)
Rating: 1 A, 30 W (resistive)

Power Source: 24 Vdc nominal, 150 mA max; acceptable range 20-30 Vdc. All units include a universal input/24 Vdc output power supply.

Dimensions (Overall):
5.6 inches wide (14.2 cm)
3.3 inches high (8.4 cm)
8.5 inches deep (22.4 cm)

Weight: 3.2 pounds (1.45 kg)

7-Pin Headset Connector AssemblyStudio Technologies 13561 7-Pin Headset Connector Assembly

Allows a technician to add a 7-pin female XLR-type connector to Model 200-Series Announcer's Consoles. Provides support for headsets that use a 7-pin plug for mic and dual earpiece connections. Installs in one of the back-panel ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$55.69List Price: $56.00

For Model 200 Series Announcer's and Producer's ConsolesStudio Technologies 5-Pin Headset Connector Assembly For Model 200 Series Announcer's and Producer's Consoles

The 5-Pin Headset Connector Assembly (part no. 13579) from Studio Technologies allows a technician to add a 5-pin female XLR connector to Studio Technologies' Model 200 Series Announcer's and Producer's Consoles. The assembly provides ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$54.74List Price: $56.00

6-Pin Headset Connector AssemblyStudio Technologies 13595 6-Pin Headset Connector Assembly

The 13595 6-pin headset connector assembly allows the technician to easily add a 6-pin female XLR-type connector (Switchcraft pin arrangement) to Model 200-Series Announcer's Consoles. It provides support for headsets that use 6-pin plug ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$55.69List Price: $56.00

Direct Microphone Output Card KitStudio Technologies 31058 Direct Microphone Output Card Kit

The 31058 Direct Microphone Output Card Kit allows a technician to add direct microphone output to Models 212, 220, 230 and 223 Announcer's Consoles. Installs in back-panel spare connector location. The card features 3-pin male XLR-type ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$51.71List Price: $52.00

Click to download
