JBL MTC81BB8
Pre-Install In-Ceiling BackCan

OUR PART #:  MTC81BB8

JBL's MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25") mounting circle diameter...
Learn More
Our Price: $34.13
Write the first review.

This product must be purchased in multiples of 4

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL MTC81BB8
Qty:
Please call for availability.

Similar Products

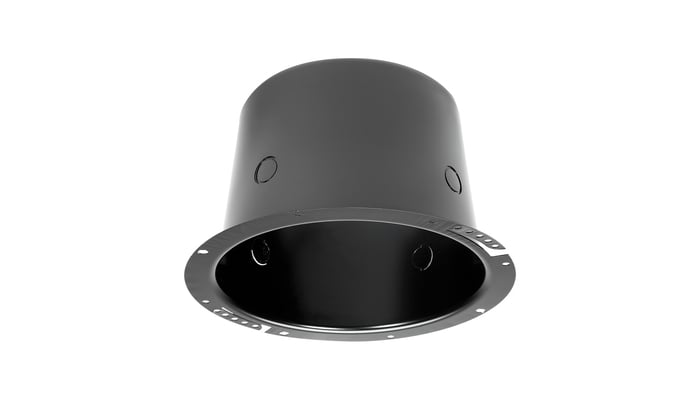

JBL's MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25") mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.

Providing a larger backcan air volume than most cost-effective backcans, the MTC-81BB8 allows ceiling speakers to produce extra bass capability for a wider frequency response and improved overall sound quality.  This angled-wall backcan nests to reduce inventory space and transportation
costs.

The MTC-81BB8 is supplied with five conduit knockouts, four clip-nuts for tile bridge to backcan attachment, as well as acoustic lining and two perforated bend-up mounting straps.

Features:

  • Fits 8138 speaker and MTC-81TB8 Tile Bridge
  • Extra-large 7.4 liter (0.26 cu ft) volume allows for extra bass
  • Industry standard 286 mm (11.25" ) mounting circle
  • Five conduit knockouts
  • Nesting during storage minimizes storage space requirements

Specifications:

  • Internal Volume: 7.4 liters (0.26 cu ft)
  • Knockouts:
    - 22 mm (0.87") diameter opening
    - Five (5) locations: 4 on side of can, 1 on top of panel of can
  • Suspension Tabs: 2 flexible perforated mounting straps, one on each side.
  • Attachment Points: 4 clip-nuts on 286 mm (11┬╝ in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge.
  • Material: 16 gauge (1.3 mm thick) steel, finished in black powder coating for a high level of rust resistance.
  • Dimensions: 7" H x 11.75" W x 11.75" D (178 x 300 x 300 mm)
  • Net Weight (ea): 2.5 lbs. (1.1 kg)
  • Shipping Weight (ea): 3.2 lbs. (1.5 kg)
  • Associated Models:
    - 8138 200 mm (8") ceiling speaker
    - MTC-81TB8 tile bridge for 600 mm (24") ceiling tile applications.
8" In-Ceiling Speaker (for use with Pre-Installed Backcans, Pack of 4)
JBL 8138 8" In-Ceiling Speaker (for use with Pre-Installed Backcans, Pack of 4)
JBL's 8138 is an 8" ceiling speaker designed for use with a pre-installed in-ceiling backcan, resulting in high-fidelity performance.  The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to ...
49.88

Usually ships in 7-14 business days.
Need it sooner? Call us!
Sold in multiples of 4
Free Shipping Available
Pre-Install In-Ceiling Tile Bridge (for MTC81BB8 Pre-Install Backbox and 8138 Speaker)
JBL MTC81TB8 Pre-Install In-Ceiling Tile Bridge (for MTC81BB8 Pre-Install Backbox and 8138 Speaker)
JBL's MTC-81TB8 tile bridge is designed for use in applications requiring pre-installed backcans in suspended ceiling applications and is compatible with ceiling speakers having a 286 mm (11.25") mounting circle diameter, such as the ...
17.85

Usually ships in 7-14 business days.
Need it sooner? Call us!
Sold in multiples of 4
