Community R6-BASSHORN

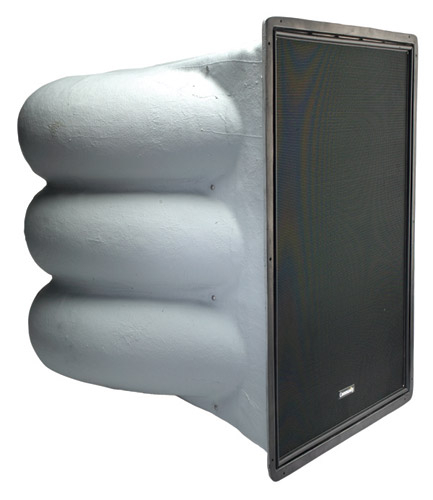

R Series Weather Resistant Bass Horn System with (6) 12" Drivers in Black

OUR PART #:  R6-BASSHORN

The Community R6-BASSHORN is a high output, high power low frequency system designed for long throw applications in larger arenas, stadiums...
Learn More

Call for price! Not available online.
List Price: $6,708.00

Similar Products

The Community R6-BASSHORN is a high output, high power low frequency system designed for long throw applications in larger arenas, stadiums, and other large scale facilities requiring high output levels with superb clarity. The R6- BASSHORN will array with effectively increased pattern control and, through mutual coupling, with higher efficiency at lower frequencies. The R6-BASSHORN has six, high sensitivity 12- inch drivers with powerful, heavy-duty motor structures mounted in a one-piece fiberglass, 42 Hz flare rate horn that is surrounded by a rigid fiberglass weatherproof cap. The R6- BASSHORN is designed as an optimum low frequency complement to horn loaded full-range systems (such as the R2) in terms of its output level, pattern control, frequency range and physical dimensions. Proper implementation with a full-range system requires an electronic crossover and alignment signal delay along with appropriate equalization.

Community R6-BASSHORN Features:

  • All-weather, fiberglass enclosure
  • Horn loaded
  • High efficiency, high output
  • Six high powered 12" drivers
  • Excellent transient response
  • Predictable LF pattern control
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R6-BASSHORN Specifications:

  • Loudspeaker Type:  Low frequency bass horn system
  • Operating Range:
    • 45 Hz to 500 Hz
    • 55 Hz to 450 Hz (+/- 4 dB)
  • Max Input Ratings:  1200W continuous, 3000W program, 89 volts RMS, 155 volts momentary peak
  • Recommended Power Amplifier:  2500W to 3600W @ 4 ohms
  • Sensitivity (1W/1m):  108 dB SPL (50 Hz - 315 Hz 1/3 octave bands)
  • Maximum Output:  139 dB SPL / 146 dB SPL (peak)
  • Nominal Impedance:  4 Ohms
  • Minimum Impedance:  3.9 Ohms @ 175 Hz
  • Nominal –6dB Beamwidth:  90° H x 60° V @ 315 Hz
  • Axial Q / DI:  9.1 / 9.6, 315 Hz
  • Recommended Signal Processing:
    • 150 Hz to 300 Hz electronic crossover
    • 40 Hz high pass filter
  • Drivers:  6 x 12" Ferrofluid-cooled
  • Driver Protection:  None
  • Input Connection:  16-2 SJOW (12 ft / 4m)
  • Controls:  None
  • Enclosure:  Hand-laminated fiberglass, light gray gelcoat
  • Mounting/Rigging Provisions:
    • (4) 1/2-13 threaded mounting points
    • (10) 5/16" holes on horn flange
  • Grille:  3-layer Weather-Stop™ grille, black finish
  • Environmental Performance:  IEC529 IP55W rating with a minimum 5-degree downward aiming angle
  • Required Accessories:  Digital Signal Processor
  • Supplied Accessories:  None
  • Optional Accessories:  None
  • Dimensions:
    • Height:  49 inches (1245 mm)
    • Width:  37 inches (940 mm)
    • Depth:  43.5 inches (1105 mm)
  • Weight:  204 lbs (92.6 kg)
