Technomad BERLIN-TOUR-6040 15" 2-Way Full-Range Touring Loudspeaker, 500W, 60x40 Dispersion

OUR PART #: BERLIN-TOUR-6040 MFR #: 1284

Copied to clipboard

Powerful, IP56 weatherproof, 2-way full-range loudspeaker, with two narrow dispersion patterns. Ideal for applications requiring constant-directivity coverage. ...Read more

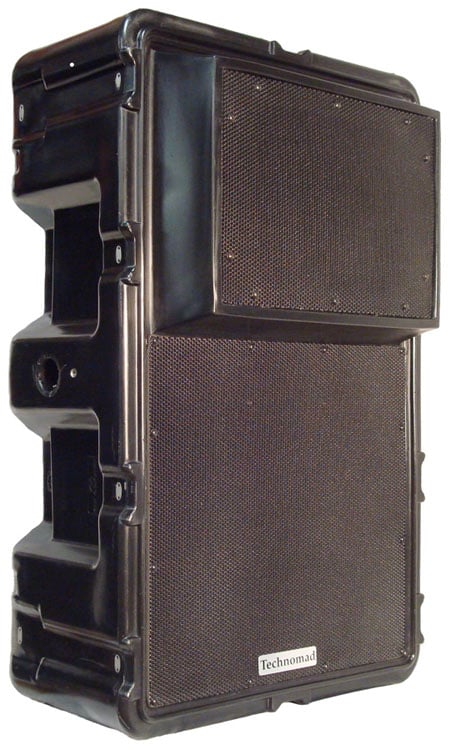

Technomad BERLIN-TOUR-6040 15" 2-Way Full-Range Touring Loudspeaker, 500W, 60x40 Dispersion Image 1
Technomad BERLIN-TOUR-6040 15" 2-Way Full-Range Touring Loudspeaker, 500W, 60x40 Dispersion
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Powerful, IP56 weatherproof, 2-way full-range loudspeaker, with two narrow dispersion patterns. Ideal for applications requiring constant-directivity coverage. The Berlin 60/40 was designed for use in abusive, real-world situations, both on the road or in permanent installations. Combining super-rugged, U.S. Armed Forces road case technology with a number of acoustic innovations, the Berlin 60/40 is a powerful and musically accurate loudspeaker.

The Berlin 60/40 is the perfect unit for any application where compact size, high frequency dispersion control and high power are required. The 2" compression driver used in the Berlin provides clean, defined sound in any environment. Technomad's unique cabinet tuning delivers exceptional bass extension, articulation, and pitch. The Berlin is extremely EQ compliant and offers the user unrivaled control over every type of program material. Only the highest quality metalized polypropylene capacitors and heavy gauge inductors are used in Technomad networks, minimizing insertion loss and resulting in smooth response throughout the operating bandwidth. Both high and low frequency drivers are ferro-fluided for longer lifespan and better power handling.

Features:

  • Constant directivity 60x40° horn
  • Superb audio quality
  • Fully weatherproof construction
  • Available in bi-amped configuration
  • One-piece, 1/2" thick molded cabinet
  • Molded-in colors will not crack or fade
  • Comprehensive warranty
  • Yoke and bracket mounting points
  • Self-draining cabinet
  • Twelve (12) optional cabinet colors
  • Available in 70v

Specifications:

  • Size: 32.9" x 20.9" x 14.2"
  • Weight: 90 lbs
  • Dispersion: 60 x 40 degrees (Berlin 6040)
  • Freq. Response: 50 Hz - 18 KHz (+/- 2 dB)
  • Sensitivity: 102 dB SPL (1W/1M, swept sine)
  • Continuous Power: 500 Watts (based on EIA test 426B)
  • Impedance: 8 ohms (nominal)
  • Connector: 2 x Speak-On
  • HF Driver: 2" horn-loaded compression driver
  • LF Driver: 15" custom cone driver
