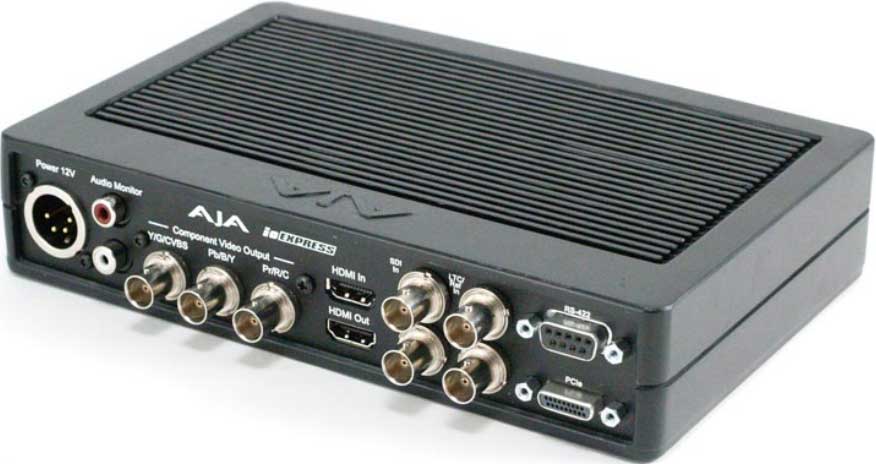

AJA Video Systems Inc Io Express PCIe
Portable A/V interface with PCIe Card Adapter and Power Supply

OUR PART #:  IO-EXPRESS-PCIE

Our Price: $995.00
Write the first review.
AJA Video Systems Inc Io Express PCIe
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AJA Io Express PCIe is the perfect Mac or PC interface for anyone who needs an inexpensive monitoring and mastering solution when working with Apple ProRes 422 and Apple ProRes 422 (HQ), XDCAM HD, DVCPRO HD, and more. Portable and simple to use, the Io Express PCIe is ideal for file-based workflows.

MacOS ingests:

  • DVCPRO HD
  • DV25/DV50
  • SD Uncompressed
  • Apple ProRes 422 (Mac Pro only)
  • SD and limited HD

MacOS or Windows plays back:

  • DVCPRO HD
  • DV25/DV50
  • SD Uncompressed
  • Apple ProRes 422 HD/SD (Mac Pro only)
  • HDV
  • XDCAM
  • XDCAM EX, XDCAM HD

NOTE: Encoding of Apple ProRes 422 and Apple ProRes 422 (HQ) is available only on Apple computers. Apple ProRes 422 and Apple ProRes 422 (HQ) can be played back on a PC with the appropriate QuickTime Windows decoder.

AJA Video Systems Inc. Io Express PCIe Features:

  • HD/SD-SDI input/output
  • HDMI v1.3a with Deep Color support at 30 and 36 bits per pixel
  • HD/SD Component Video output
  • 2-channel RCA audio output
  • LTC I/O (selectable LTC Input/Reference Video Input)
  • RS422
  • ExpressCard/PCIe interfaces, over 1-lane PCIe cable (ExpressCard standard, PCIe card optional for Mac Pro or Windows workstation)
  • For Mac OSX and Windows XP/Vista
  • Support for Final Cut Studio and Adobe CS4
  • Small, portable case design
  • 3-meter PCIe tether cable
  • 12V DC power supply
  • Rackmount kit optional
  • AJA 3-year warranty
AJA Video Systems Inc IOX-CBL-5M  Optional IO Express Tether Cable
AJA Video Systems Inc IOX-CBL-5M Optional IO Express Tether Cable
The AJA IOX-CBL-5M is an optional 5-meter PCLe tether cable for the Io Express.
175.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
AJA Video Systems Inc IOX-RM Rackmount Kit for IO Express
AJA Video Systems Inc IOX-RM Rackmount Kit for IO Express
The AJA Video Systems Inc. IOX-RM is a rackmount kit that will hold up to 2 Io Express interfaces. NOTE: The Io Express interfaces shown above are NOT included with purchase of this rack kit.
135.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
AJA Video Systems Inc IOCARD- X1 Interface Adapter Card for Io Express
AJA Video Systems Inc IOCARD- X1 Interface Adapter Card for Io Express
The AJA IOCARD-X1 interface adapter card for the Io Express is a 1-lane PCIe card to PCIe cable interface adapter house.
95.00

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available

To be the first to review this item, click here.

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
