Ensemble Designs BE-91
HD Upconverter with AES Audio

OUR PART #:  BE-91

Our Price: $1,995.00
List Price: $2,100.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-91
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Easy To Use
BrightEye 91 is an upconverter with analog composite and SD SDI inputs. Feed the analog composite or SD SDI output of a camera to a BrightEye 91 and upconvert to HD. You can take the HD signal from the BrightEye 91 into a switcher or projection system. Upconverting existing SD equipment lets you leverage the equipment you already have and operate in the HD domain. An external reference input allows genlock to a house reference. All vertical interval data and closed captioning is faithfully passed.

Upconvert Before Distribution
While some cameras may have firewire out, using the video output and upconverting before distribution is preferable since longer cable runs can be achieved and quality is superior. Additionally, the BrightEye 91’s reference input allows you to time the upconverted video output for use with a production switcher.

Audio Processing
BrightEye 91 handles both embedded audio and discreet AES digital audio inputs. Sixteen channels of embedded audio are supported in BrightEye 91. If the incoming video has embedded audio, the audio will be safely bypassed around the video processing and lipsync will be preserved. Audio mixing is available for two of the four embedded groups of audio.

Audio Monitoring
Audio monitoring is easy with BrightEye 91’s convenient 3.5mm mini jack. Just select the audio channels you want to monitor from the front panel and plug in a headset.

Monitoring with HDMI
The HDMI connector on the rear of the unit provides a future proof monitoring interface. Plug it into most LCD monitors for confidence monitoring of your feed.

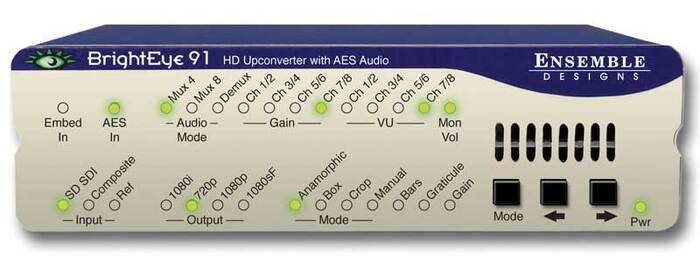

Front Panel and Software Control
Input selection, gain control, and test pattern controls are provided through the front panel interface. Audio presence LEDs indicate which channels are detected. Controls for crop, letterbox and pillarbox are accessed from the front panel or BrightEye Mac or PC software. Video and audio levels and the audio mixer can be adjusted through BrightEye Mac or PC software.

Features

  • Use with Cameras and Projection Systems
  • Turn Analog Camera into Digital HD Source
  • SD Digital and Analog Composite Video Inputs
  • AES Inputs
  • Analog Audio Monitor Output
  • Mirror Output Mode for On-Camera Talent
  • Graticule and Safe Generator
  • HDMI Output for Monitoring
  • Frame Sync
  • 12 and 16 bit processing
  • Passes Embedded Audio
