Ensemble Designs BE-73
HD/SD AES Embedder with Optical Out

OUR PART #:  BE-73

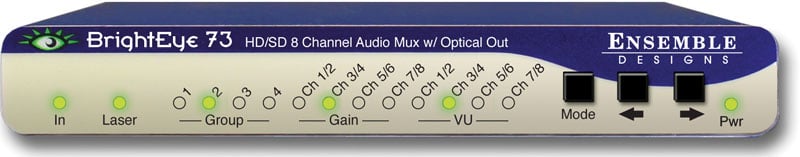

The BrightEye 73 is a dual rate eight channel audio embedder for 1.5 Gb/s high definition video signals or for 270 Mb/s standard definition signals.
Learn More
Our Price: $1,330.00
List Price: $1,400.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-73
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The BrightEye 73 is a dual rate eight channel audio embedder for 1.5 Gb/s high definition video signals or for 270 Mb/s standard definition signals.

There is one serial digital video input and four AES audio inputs. These four AES streams are embedded into the video stream. AES inputs are sample rate converted, allowing the use of asynchronous audio. The output of the module is an optical signal that contains the original video signal and four AES pairs.

The BrightEye 73 includes an eight channel audio mixer with channel swap and shuffle capability that allows you to completely re-arrange and re-mix audio channels. It provides precise controls over audio level, with up to 12dB of gain to compensate for low level sources. All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second. The Data mode operation allows Dolby E or AC3 inputs.

Features

  • Optical transmitter
  • Use with servers, workstations and routers
  • 8 channel audio embedder
  • Adjustable delay
  • HD/SD SDI electrical and AES inputs
  • Optical embedded output
