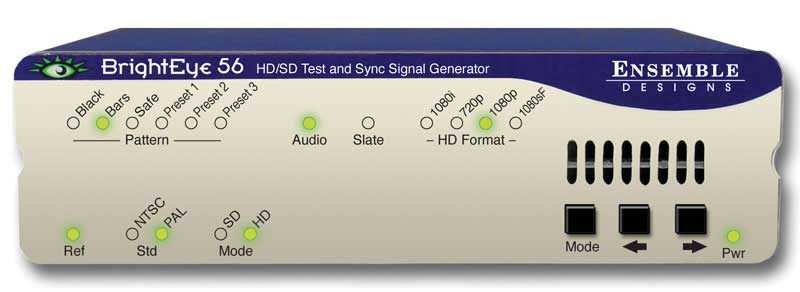

Ensemble Designs BE-56
HD/SD/Analog Test Signal and Sync Pulse Generator

OUR PART #:  BE-56

BrightEye 56 is a genclockable sync generator and test signal generator that can be used as either a slave or master reference generator.
Learn More
Our Price: $2,612.50
List Price: $2,750.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-56
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

BrightEye 56 is a genclockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 56 is well suited for remote trucks, post, helicopters and fly packs.

HD or SD SDI test signals (test patterns) or black with embedded audio is output on the SDI BNCs. Composite, HD Tri-level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Wordclock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.

Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic) are just some of the signals simultaneously available on the SDI and analog composite outputs. The Cyclops feature adds a motion element to the selected video test signal. An ID slate with user programmable text can overlay the test pattern.

The internal Time Code Generator feeds DVITC on the SDI outputs and VITC on the composite outputs, Time Code can also be selected in LTC form on the programmable Aux outputs.

Many controls can be adjusted through the intuitive front panel. BrightEye Mac or PC software provide a complete user interface for all adjustments and controls.

Features

  • Master or Slave Reference Generator for all video and audio gear
  • Sync pulse generator
  • 30+ HD and SD Test Signals
  • Composite, SD SDI, HD Tri-Level Outputs
  • Time Code Generator
  • Generates closed caption test signal to assist with CC compliance
  • Analog, AES and Embedded Audio Outputs
