Ensemble Designs BE-30 Audio ADC/DAC, Bi-Directional

OUR PART #: BE-30 MFR #: BE-30

Copied to clipboard

BrightEye 30 is a flexible audio converter that can be a two channel, bi-directional ADC and DAC, or it can be configured as a four channel converter ... Read more

Ensemble Designs BE-30 Audio ADC/DAC, Bi-Directional Image 1
Ensemble Designs BE-30 Audio ADC/DAC, Bi-Directional Image 2
Ensemble Designs BE-30 Audio ADC/DAC, Bi-Directional
Our Price: $997.50
List Price: $1,050.00
You save 5%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

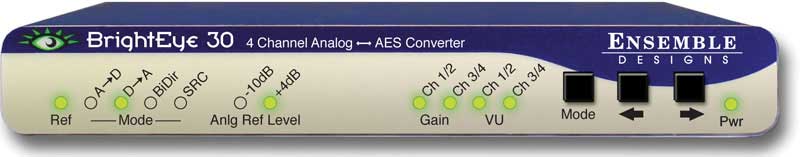

BrightEye 30 is a flexible audio converter that can be a two channel, bi-directional ADC and DAC, or it can be configured as a four channel converter. Perfect in desktop, post and broadcast applications, 24 bit processing ensures beautiful audio.

As a bi-directional converter, two channels of analog audio are converted to AES digital audio and at the same time an AES stream is converted to two channels of analog.

Alternately, the unit can be configured as a four channel AES to analog converter or a four channel analog to AES converter.

BrightEye 30 also serves as a sample rate converter. For example, a digital 44.1 kHz signal from a CD player can be fed to the input and a digital AES3id, 48 kHz signal synchronous to the reference input will be output. Audio mixing, level adjustments, and channel shuffling are accessed through BrightEye Mac or PC software. A variety of audio connectors and adapters are available for integrating BrightEye 30 to any type of system.

A reference input is provided which allows digital outputs to be synchronized to either a PAL or NTSC video signal or AES reference.

Features

  • 2 or 4 channel audio converter
  • Analog and digital inputs
  • Analog and digital outputs
  • Bi-directional ACD/DAC
  • Sample rate converter
