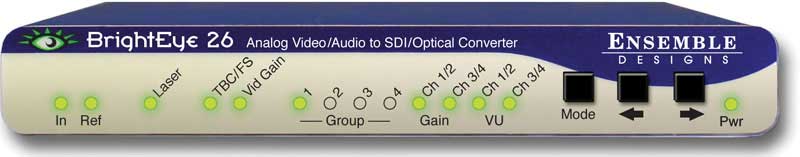

Ensemble Designs BrightEye 26 Analog Video/Audio to SDI/Optical Converter with TBC and Embedder

OUR PART #: BE-26

Copied to clipboard

BrightEye 26 converts analog composite video to SD SDI, with simultaneous conversion of four channels of audio and embedding. ...Read more

Ensemble Designs BrightEye 26 Analog Video/Audio To SDI/Optical Converter With TBC And Embedder Image 1
Ensemble Designs BrightEye 26 Analog Video/Audio To SDI/Optical Converter With TBC And Embedder Image 2
Ensemble Designs BrightEye 26 Analog Video/Audio To SDI/Optical Converter With TBC And Embedder
Our Price: $1,615.00
List Price: $1,700.00
You save 5%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

BrightEye 26 converts analog composite video to SD SDI, with simultaneous conversion of four channels of audio and embedding. It is similar to the BrightEye 25, with the addition of an optical output. A TBC/Frame Sync is a standard feature and allows this BrightEye to work with any sort of video input. Great for broadcast and desktop applications, BrightEye 26 can be used with sources such as VTRs and incoming satellite feeds.

The analog input is converted at 12 bits of resolution and digitally decoded to 10 bit YCrCb components. The signal is then time base corrected and frame synchronized to the reference input. The audio is converted to digital and then it passes through the built-in four channel mixer with shuffle and level control. The video and audio signals join up in an embedded which can be targeted to any of the four groups.

Basic controls are accessed on the front panel. BrightEye Mac or PC software provides access to video proc functions and the built-in audio mixer. The vertical interval can be passed or blanked. VU indication is provided on the front panel and through BrightEye Mac or PC software.

Features

  • Optical Transmitter
  • Convert analog sources to Embedded SDI
  • Analog audio and video inputs
  • Embedded SDI output
  • TBC and Frame Sync
  • 12 and 24 bit processing
