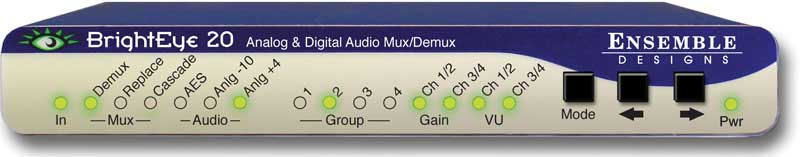

Ensemble Designs BE-20
Analog & Digital Audio Embedder or Disembedder

OUR PART #:  BE-20

BrightEye 20 is a versatile Mux/Demux. With SDI video I/O, and both analog and AES I/O, it is field configurable for embedding or disembedding.
Learn More
Our Price: $950.00
List Price: $1,000.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BE-20
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

BrightEye 20 is a versatile Mux/Demux. With SDI video I/O, and both analog and AES I/O, it is field configurable for embedding or disembedding.

When configured as a multiplexer, BrightEye 20 has one serial digital video input and two AES digital audio inputs. Alternately, the 4 channel analog audio input can be used. The audio is embedded into the 601 video stream. The output is a serial digital video stream that contains the original video plus the two AES streams or four analog audio channels.

When configured as a demultiplexer, audio signals present in the incoming serial digital video signal are extracted and delivered simultaneously as two AES digital audio streams and as four analog audio channels.

Audio mixing, level adjustments, and channel shuffling can be applied to both the multiplexer and demultiplexer modes, and are accessed through BrightEye Mac or PC software. Audio group selection is also made through BrightEye Mac or PC software. A variety of audio connectors and adapters are available for integrating BrightEye 20 to any type of system.

Features

  • Audio embedder or disembedder
  • Analog and digital inputs
  • Analog and digital outputs
  • Use in desktop and broadcast applications
