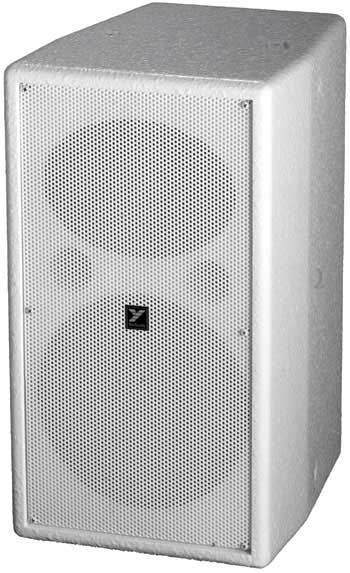

Yorkville C190W
Coliseum Mini-Speaker, 8" woofer, 150 Watts at 8 Ohms, White

OUR PART #  C190W

Our Price: $124.99
List Price: $169.99
You save 26%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The compact 150-watt C190 is capable of delivering a full 70 to 20,000 Hz frequency response. This proven 8-inch woofer and horn design uses an injection molded 90 x 30 degree horn assembly with 1.4-inch titanium driver.

Yorkville’s self-resetting PTC™ high frequency protection circuit protects the high frequency components used in the C190. PTC™ offers serious advantages over protection schemes used in many loudspeaker cabinets. While always present in the signal path, remains inaudible until it becomes necessary for it to react, at which point it effectively reduces output to the horn, protecting it from damage due to excessive power input or signal distortion. Unlike a breaker it does not require a physical reset to allow signal back to the horn driver, and unlike a bulb or fuse, does not need to be replaced if the circuit is tripped, and the fuse is blown, making it the ideal high frequency protection scheme for an installation loudspeaker.

A polemount socket and nine integrated 3/8-inch flypoints allow the C190 to be installed or flown easily and on virtually any angle without modification to the speaker. The all-metal grille protects the loudspeaker components while the all-metal input plate supports both 1/4-inch and binding post connectors.

Availble in both black (C190) and white (C190W) painted finishes.

Yorkville C190W White Colliseum Mini-Speaker Specifications:

  • System Type 2-Way
  • Active or Passive Passive
  • Program Power (Watts) 150
  • Biampable No
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 91
  • Max SPL (dB) 113
  • Frequency Response (Hz +/- 3db) 70 - 20k
  • Crossover Frequency (Hz) 1800
  • Driver Configuration 8 inch / 1.4 inch
  • HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
  • HF Horn Injection Molded ABS
  • HF Dispersion (°H x °V) 90 x 30
  • HF Protection PTC™
  • LF Driver(s) 8 inch Ceramic
  • LF Program Power(Watts) 150
  • Inputs - 1/4" Jacks 2
  • Inputs - Binding Post 1
  • Flying Hardware 3/8 inch x 5
  • Pole Mount Adapter (1 3/8"-3.5cm) Yes
  • Enclosure Materials 3/4 inch MDF
  • Grille White Perforated Metal
  • Covering / Finish White Painted
  • Dimensions (DWH xbackW, inches) 12.75 x 10 x 18 x 8.25
  • Dimensions (DWH xbackW, cm) 32.4 x 25.4 x 45.7 x 21
  • Weight (lbs/kg) 26 / 11.8
  • * Specifications subject to change without notice

Click to download

Yorkville C190W
Coliseum Mini-Speaker, 8" woofer, 150 Watts at 8 Ohms, White

OUR PART #  C190W

Product Information:

The compact 150-watt C190 is capable of delivering a full 70 to 20,000 Hz frequency response. This proven 8-inch woofer and horn design uses an injection molded 90 x 30 degree horn assembly with 1.4-inch titanium driver.

Yorkville’s self-resetting PTC™ high frequency protection circuit protects the high frequency components used in the C190. PTC™ offers serious advantages over protection schemes used in many loudspeaker cabinets. While always present in the signal path, remains inaudible until it becomes necessary for it to react, at which point it effectively reduces output to the horn, protecting it from damage due to excessive power input or signal distortion. Unlike a breaker it does not require a physical reset to allow signal back to the horn driver, and unlike a bulb or fuse, does not need to be replaced if the circuit is tripped, and the fuse is blown, making it the ideal high frequency protection scheme for an installation loudspeaker.

A polemount socket and nine integrated 3/8-inch flypoints allow the C190 to be installed or flown easily and on virtually any angle without modification to the speaker. The all-metal grille protects the loudspeaker components while the all-metal input plate supports both 1/4-inch and binding post connectors.

Availble in both black (C190) and white (C190W) painted finishes.

Yorkville C190W White Colliseum Mini-Speaker Specifications:

  • System Type 2-Way
  • Active or Passive Passive
  • Program Power (Watts) 150
  • Biampable No
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 91
  • Max SPL (dB) 113
  • Frequency Response (Hz +/- 3db) 70 - 20k
  • Crossover Frequency (Hz) 1800
  • Driver Configuration 8 inch / 1.4 inch
  • HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
  • HF Horn Injection Molded ABS
  • HF Dispersion (°H x °V) 90 x 30
  • HF Protection PTC™
  • LF Driver(s) 8 inch Ceramic
  • LF Program Power(Watts) 150
  • Inputs - 1/4" Jacks 2
  • Inputs - Binding Post 1
  • Flying Hardware 3/8 inch x 5
  • Pole Mount Adapter (1 3/8"-3.5cm) Yes
  • Enclosure Materials 3/4 inch MDF
  • Grille White Perforated Metal
  • Covering / Finish White Painted
  • Dimensions (DWH xbackW, inches) 12.75 x 10 x 18 x 8.25
  • Dimensions (DWH xbackW, cm) 32.4 x 25.4 x 45.7 x 21
  • Weight (lbs/kg) 26 / 11.8
  • * Specifications subject to change without notice

Click to download

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
