Quam MA/E9/S2/T8 610 CID Sound Masking Grid Mount Back Box and Speaker Assembly, 70V

OUR PART #: MA/E9/S2/T8

Write the First Review
Copied to clipboard

Quam's MA / E9 / S2 / T8 is a complete, sound masking loudspeaker assembly, with 8" frame loudspeaker... ...Read more

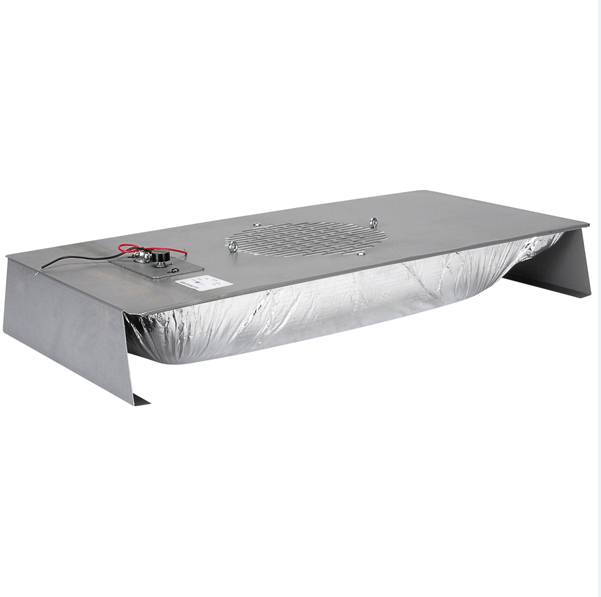

Quam MA/E9/S2/T8 610 CID Sound Masking Grid Mount Back Box And Speaker Assembly, 70V Image 1
Quam MA/E9/S2/T8 610 CID Sound Masking Grid Mount Back Box And Speaker Assembly, 70V
More Quam products
Our Price: $102.28
List Price: $121.82
You save 16%!
Price-Matching Symbol. Low Price Guaranteed

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.
Free Shipping Available Item Ships FREE
Request a Quote Add to Wish List

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Quam's MA / E9 / S2 / T8 is a complete, sound masking loudspeaker assembly, with 8" frame loudspeaker, 70.7V transformer, dust-proof perforated steel baffle and 890 CID / (14.3L) composite back box. The finish is Rust-resistant CRS.

Specifications:

  • Speaker Size: 8" frame
  • Average Sensitivity: 95dB SPL, 1W / 1M
  • Loudspeaker Power Rating: 20W RMS, EIA 426A Standard
  • Calculated Maximum System Output: 101dB SPL, 4W / 1M
  • Magnet Type, Weight: BeFe Ceramic, 10oz. Nominal
  • Frequency Response: 65Hz - 17kHz EIA 462A Standard
  • Nominal Coverage Angle: 100° Included Angle, -6dB / 2kHz, Half space
  • Mechanical Connection: Seismic tie-offs provided on top of unit if required by AHJ
  • Signal Cable Entry: 1/2" conduit clamp through single-gang cover plate
  • Audio Connection: 7" long, tinned wires, pre-cut
