Galaxy Audio AS-TXRM Stationary UHF Audio Link Transmitter for Traveler Portable PA Systems

Galaxy Audio's AS-TXRM is the stand-alone version of their AS-TVTX Audio Link Transmitter module. The module is housed in a standard half-rack-sized enclosure and includes a variety of inputs and outputs as well as mixing controls. The TXRM is great for transmitting the entire mix from a mixing console to one or more Traveler speakers equipped with wireless receivers.

Features:

• 96 selectable channels
• LCD display
• Channel selector
• UHF Frequency
• RF and AF indicator
• Volume control

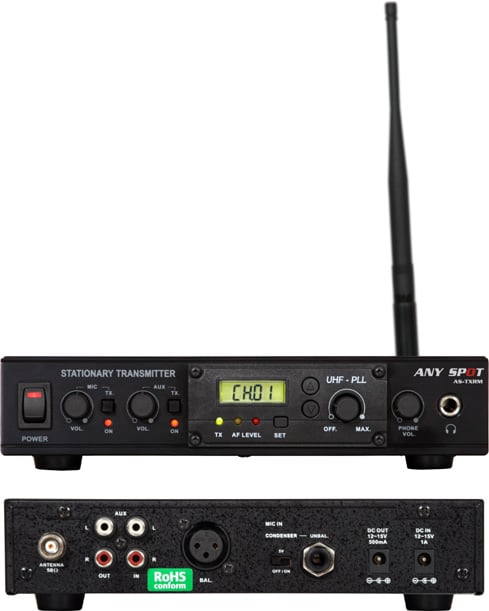

• Controls:
  • 1. Power Switch w/ LED
  • 2. Mic Volum
  • 3. Mic On/Off Switc
  • 4. Mic On LE
  • 5. Aux Volum
  • 6. Aux On/Off Switc
  • 7. Aux On LED
  • 8. Transmitter Module
  • 9. Headphone Volume
• Inputs & Outputs:
  • 10. Headphone Output
  • 11. Antenna Connector
  • 12. L/R Aux Outputs
  • 13. L/R Aux Inputs
  • 14. Balanced Mic Input
  • 15. 5v DC Mic Switch
  • 16. Unbalanced Mic Input
  • 17. 12-15v DC Output
  • 18. 12-15v DC Input

Specifications:

• RF output: 10mW
• Spurious emission: Less than 250 nW
• Display status: LCD indicator displays channel or frequency
• Channel select: SET, UP, DOWN keys
• Antenna: External
• Dimensions: 8.375" x 8 " x 1.75 " (213 x 203 x 45 mm)
• Weight: 2.8 lbs. (1.27 kg)
