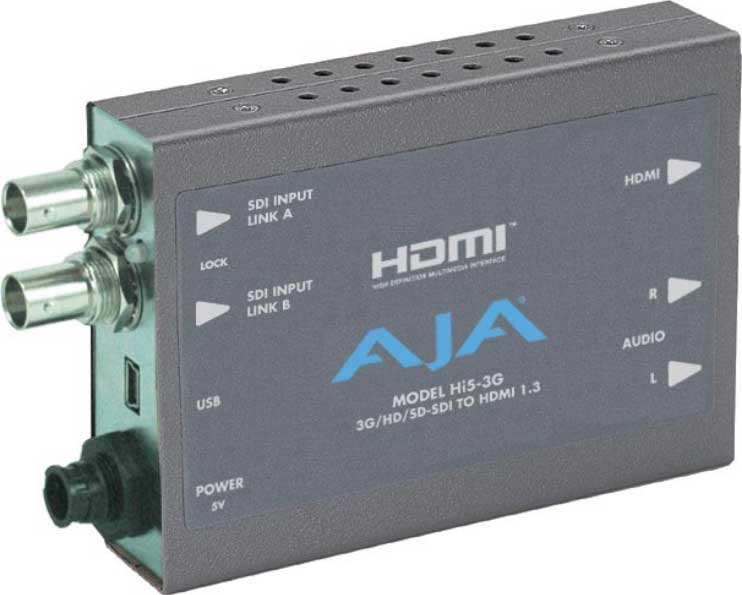

AJA Video Systems Inc Hi5-3G
SD/HD/Dual-Link/3G-SDI to HDMI 1.3a Video & Audio Mini Converter with Power Supply

OUR PART #:  HI5-3G

The AJA Video Systems Hi5-3G converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors.
Learn More
Our Price: $595.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Hi5-3G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Hi5-3G converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows for full support of the latest 10-bit monitors. Audio is supported in the HDMI output, providing you with a convenient single cable audio/video connection. The Hi5-3G features 2-channel RCA-style audio outputs for separate audio monitoring, if needed. USB connectivity allows for easy PC/Mac setup and field upgrades.

AJA Hi5-3G SD/HD/Dual-Link/3G-SDI to HDMI Mini Converter Features:

  • 3G/HD/SD-SDI to HDMI
  • SMPTE425M-AB input
  • Full HDMI 1.3a support including: - Deep Color 30- and 36-bit video per pixel (24-bit also supported) - 2 or 8 channels of embedded audio
  • Additional 2 channel RCA analog audio output (User-assignable channels)
  • Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
  • 1m HDMI cable and power supply included
  • 5 year warranty

AJA Hi5-3G SD/HD/Dual-Link/3G-SDI to HDMI Mini Converter Specifications

  • Input Formats:
    • 525i, 625i, 720p 50/59.94/60
    • 1080i50/59.94/60
    • 1080p 23.98/24/25/29.9/30/50/59.94/60
    • 1080psF23.98/24/25/29.97/30
    • YCbCr/RGB/XYZ 10/12-bit
  • Video Inputs:
    • 3G, HD and SD-SDI(auto-selected)
    • SMPTE-259/274/292/296/372/424/425
    • 2x BNC
  • Video Output:
    • HDMI v1.3a, 30/36 bits per pixel
    • RGB orYUV
    • 2.25Gbs
    • SD, HD
    • 1080p 50/60
    • HDMI Standard Type A connector
  • Audio Outputs:
    • HDMI embedded audio
    • 24 bit
    • 2 or 8 channelsRCA-style analog outputs at -10dBV (nominal)
    • User-assignable channels
  • Size: 5.8" x 3.1" x 1"
  • Power: +5 VDC regulated, 5 watts (AJA power supply included)
