Doug Fleenor Designs 2322DMX
RS-232 to DMX Interface

OUR PART #:  2322DMX

The Doug Fleenor Design RS-232 to DMX interface allows advanced A/V control systems and computers to operate standard DMX512 devices such as dimmers and moving lights.
Learn More
Selected Model Price: $1,154.25
List Price: $1,425.00
Save up to 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs 2322DMX
Select a Model: (shipping times are approximate)
Qty:

Similar Products

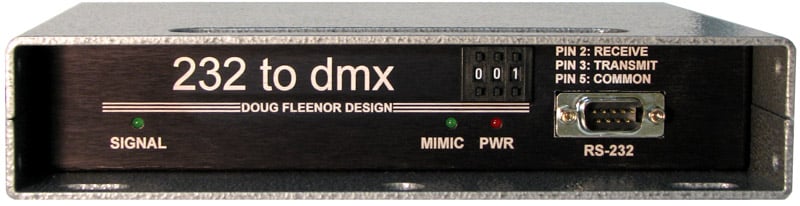

The Doug Fleenor Design RS-232 to DMX interface allows advanced A/V control systems and computers to operate standard DMX512 devices such as dimmers and moving lights. It can also be used to allow an RS-232-based control system to receive DMX512 data. The RS-232 protocol used for this communication is made up of simple ASCII strings sent or received at 9600 baud. The interface can set and fade DMX channels to specific levels. It can also record and play 20 presets, each with individual fade times. The interface can be used to capture incoming levels produced by an outside DMX source. The RS-232 port appears on the front panel as a standard DB-9 connector. Another RS-232 port is available on the rear panel through a 3 pin female XLR connector. Only one of these connections can be used at a time. For simple operation, the Windows Hyperterminal program can be used to communicate with the interface.

Doug Fleenor Design RS2322DMX Specifications:

  • DMX data rate: 250 Kb/s
  • DMX circuit: ESD protected EIA-485 transceiver( LT1785)
  • DMX signal: Fully opto-isolated, bi-directional
  • DMX connectors:
    • Gold-plated male 5-pin XLR (Neutrik D-1 series).
    • Gold-plated female 5-pin XLR (Neutrik D-1 series). All pins wired through.
    • Pin 1 = common, Pin 2 = Data-, Pin 3 =Data+.
  • RS-232 data rate: 9600 bps, 8 data bits, 1 start bit, 1 stop bit, no parity
  • RS-232 circuit:
    • RS-232 driver (MAX232)
    • Outputs are short circuit protected but not over voltage protected.
  • RS-232 signal: RS-232 driver yields an approximate +/- 10 volt signal
  • RS-232 connector:
    • DB9 (male)
      • Pin 2 = receive, Pin 3 = transmit, Pin 5 = common, Pin 7 = RTS, Pin 8 = CTS
      • (DB9 Female to Female, null modem cable provided)
    • Gold-plated female 3-pin XLR (Neutrik D-1 series).
    • Pin 1 = common, Pin 2 = receive, Pin 3 = transmit.
  • User interface: Start address set via a three digit thumbwheel switch
  • Indicators: Red power LED, Green DMX signal LED, Green MIMIC LED
  • Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208-240 volt optional)
  • Color: Silver hammertone with black front and back panels
  • Dimensions: 6.5" D x 1.7" H x 8.25" W (19" rack kits available -sold separately)
  • Weight: 3.3 lbs
Rack Kit
Doug Fleenor Designs RK8-1 Rack Kit
This unit is an 8" wide 1U rack kit, allowing you to mount equipment in a standard rack.
27.00 30.00 10

Usually ships in 7-14 business days.
Need it sooner? Call us!
Rack Kit for Model: 125, 2322DMX, DMX2DAL, SW2
Doug Fleenor Designs RK8-2-S Rack Kit for Model: 125, 2322DMX, DMX2DAL, SW2
The Doug Fleenor Design RK8-2-S is two 8" wide gray chassis in 1U.
27.00 30.00 10

Usually ships in 7-14 business days.
Need it sooner? Call us!
