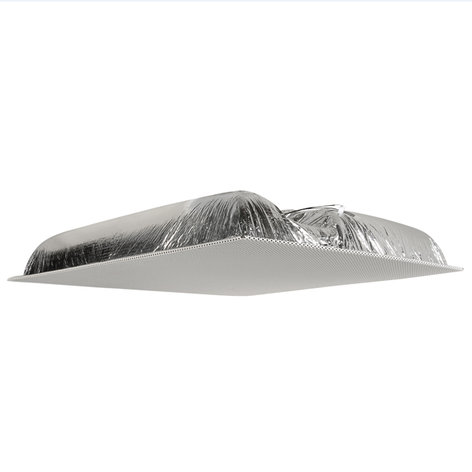

Quam SYSTEM-12/8 24"x24" Tile Replacement Loudspeaker System, 8 Ohm Impedance

The SYSTEM 12 is a complete, UL Listed, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 8C5PAX - 8" O.D. dual cone loudspeaker with a 5oz. magnet and 8Ω impedance. Molded fiber enclosure is 1,412 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp is included. No assembly required.

Features

• Complete loudspeaker assembly with 8" frame loudspeaker and perforated steel baffle
• 8Ω impedance
• Mounts parallel to floor plane in a 24" wide suspended ceiling tile grid
• Great for signal tones, voice, and music applications
• 12W RMS power rating

Specifications

• Speaker Size 8” frame
• Average Sensitivity 92dB-SPL, 1W / 1M
• Loudspeaker Power 12W RMS, EIA 426A Standard Rating
• Calculated Maximum 103dB-SPL, 12W / 1M System Output
• Magnet Type, Weight BeFe Ceramic, 4.8oz. Nominal
• Frequency Response 42Hz - 17kHz - EIA 426A Standard
• Nominal 100° Included angle, -6dB Coverage Angle 2kHz, half space
• Audio Connection 7” long, labeled tinned wires, pre-cut
