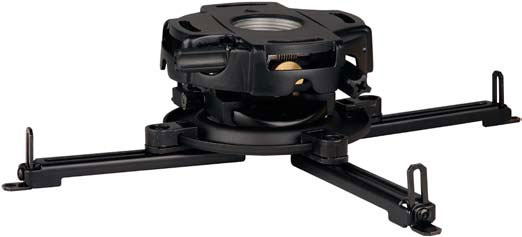

Peerless PRG-1
Universal Precision Gear Projector Mount in Black WITHOUT Adapter Plate


Our Price: $64.22
List Price: $133.00
You save 52%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Peerless-AV's PRG Precision Gear Projector Mount is simplifying the way image alignment is done.  The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand.  Just set the precision gear to the desired position to secure it in place – it will hold its position even during projector maintenance.  With Peerless-AV's PRG Precision Gear Projector Mount, just set it and forget it.  No more adjustment screws.  No more micro adjustments.  No more hassles.

NOTE: This product requires the additional purchase of a PAP model adapter plate, such as the PAP-UNV (pictured above ON the mount), in order to complete your installation.  Please contact your sales representative for more information.


  • Patent-pending precision gears provides exactprojector image alignment
  • Two adjustment knobs control projector image alignment
  • Pre-assembled design reduces installation time
  • Horizontal wrench access slots make flush mounting installations fast andeasy
  • Cable management allows cables to be routed through projector mount out ofsight
  • "U"-shaped pitch bracket allows for hassle free cable routing
  • Quick-release mechanism to easily service projector
  • Spider® Universal Adapter Plate extends up to 17.63" (448 mm) to fit mostprojector models
  • Pre-installed security screws provide optional tilt and roll lock toprevent tampering with adjustment knobs


  • Dimensions: 5.58" W x 2.47" H x 5.58" D (142 x 63 x 142 mm)
  • Weight: 1.56 lbs (0.71 kg)
  • Tilt: ±20°
  • Roll: ±10°
  • Swivel: 360° when mounted on extension column, ±15° when flushmounted on ceilings
  • Mounting Pattern: 0 mm (0")
  • Weight Capacity: 50 lbs (22 kg)
  • Color: Black
  • Finish: Powder Coat
  • Security Features: Security Hardware
  • Distance from Ceiling: 2.47" (63 mm)
  • Shipping Dimensions: 6.5" W x 3" H x 7"D (165.1 x 76.2 x 177.8 mm)
  • Shipping Weight: 1.82 lbs (0.82 kg)
Projector Adapter Plate for Vector Pro & Vector Pro+Peerless PAP-UNV Projector Adapter Plate for Vector Pro & Vector Pro+

Features: Universally compatible with most projectors. Features security fasteners for theft resistance Flip-down hinges that allow easy access to the projector formaintenance, cleaning, etc.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$67.95List Price: $96.00You save 29%!

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
