Gefen EXT-HDMI1.3-141SBP HDMI 1.3 Super Booster Plus

OUR PART #: EXT-HDMI1.3-141SBP MFR #: EXT-HDMI1.3-141SBP

Copied to clipboard

Gefen's EXT-HDMI1.3-141SBP Super Booster Plus for HDMI 1.3 allows the extension of HDMI 1.3 cables up to 100 feet and HDMI 1.2 cables 200 feet (60m) from the HDMI source. ...Read more

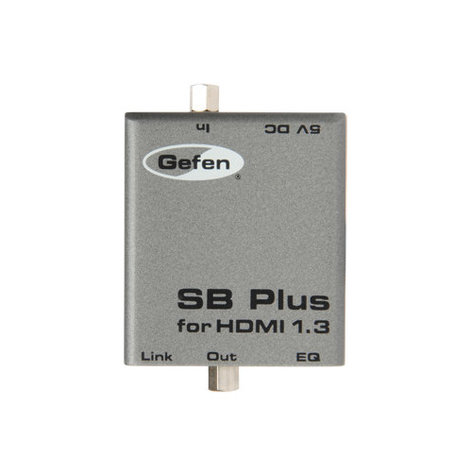

Gefen EXT-HDMI1.3-141SBP HDMI 1.3 Super Booster Plus Image 1
Gefen EXT-HDMI1.3-141SBP HDMI 1.3 Super Booster Plus Image 2
Gefen EXT-HDMI1.3-141SBP HDMI 1.3 Super Booster Plus Image 3
Gefen EXT-HDMI1.3-141SBP HDMI 1.3 Super Booster Plus
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Gefen's EXT-HDMI1.3-141SBP Super Booster Plus for HDMI 1.3 allows the extension of HDMI 1.3 cables up to 100 feet and HDMI 1.2 cables 200 feet (60m) from the HDMI source. The Super Booster Plus supports displays up to 1080p and HDMI 1.3 features such as deep color and lossless audio formats.

The Super Booster Plus model implements DDC reclocking which will make HDCP handshaking and EDID transmission more reliable over long distances of copper cable.

The Gefen Super Booster Plus for HDMI 1.3 and HDMI cables can also be cascaded with additional HDMI Super Booster Plus units and cables (a technique known as "daisy chaining") to create an even longer extension.

Note: HDMI1.3 source material may be extended up to 100 feet from an HDMI-compliant display. The extension distance of 200ft at 1080p applies to HDMI1.2 source content only.

This device is an HDCP pass-through device.

HDMI 1.3 Features Supported:

  • 225 MHz (up to 12 bit YUV 444 @ 1080p)
  • Dolby TrueHD & DTS Master
  • Deep Color Supported (XV Color)
  • Lip-Sync Pass Through
  • CEC Pass Through

Features:

  • HDCP pass-through and HDMI compliant
  • Compact, portable unit installs in minutes
  • Wall-powered for extra amplification power
  • Based on proven Gefen Super Booster technology
  • Daisy-Chaining ability allows long extensions
  • DDC Robustness gives a stronger signal at long distances

Specifications:

  • Video Amplifier Bandwidth: 225 MHz
  • Input Video Signal: 1.2 volts p-p
  • Input DDC Signal: 5 volts p-p (TTL)
  • Single Link Range: 1080p/1920 x 1200
  • HDMI Connector: type A 19 pin female
  • Dimensions: 1.5" W x 1.1" H x 1.7" D
  • Shipping Weight: 1 lb.
  • Power Supply: 5Vdc / consumes 5W power (max)
