Gefen Inc EXT-COMPAUD-CAT5-444
4:4 Component Video with Audio CAT5 Matrix

OUR PART #:  EXT-COMPAUD-CAT5-444

Image 4
Image 3
Image 2

Click a thumbnail to see more images. (5 total)

Our Price: $1,999.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-COMPAUD-CAT5-444
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

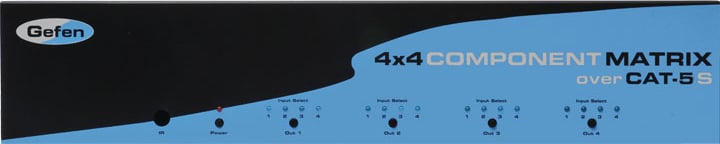

Gefen's EXT-COMPAUD-CAT5-444 4x4 Component/Audio CAT5 Matrix offers unprecedented flexibility and convenience by routing high definition video and analog/digital audio from any of four Component video sources to any of 4 remote displays over standard CAT5 cabling.

Each remote display has a control box that allows the viewer to select any of the 4 video sources and control that source via an IR remote control as if the viewer was standing in the room where the source originates.

Full High-Resolution HDTV signals are supported up to a resolution of 1080p at a maximum distance of 1000 feet. The Gefen 4x4 Component/Audio CAT5 Matrix works with any Component video source including DVD players, cable boxes, and satellite set-top boxes that connect to a Component display. Every source is accessible at all times by any display by selecting it with the IR remote.

Note: The Gefen 4x4 Component/Audio CAT5 Matrix can receive both analog L+R stereo or S/PDIF digital audio, and output all audio formats at the reciever/display end: TOSlink, S/PDIF, and analog L + R stereo audio.

Gefen Inc EXT-COMPAUD-CAT5-444 Features:

  • Switches easily between any four component/audiosources
  • Sends up to four video inputs to any four remotedisplays
  • Maintains 1920 x 1200, 1080p, and 2k resolution video
  • Extends video up to 1000 feet over CAT-5 cable
  • Discrete IR remote (included)
  • Serial RS-232 remote port
  • Rack ears included

Gefen Inc EXT-COMPAUD-CAT5-444 Specifications:

  • Video Amplifier Bandwidth: 350 MHz
  • Input Video Signal: 1.2 volts p-p
  • Video Resolutions: 1080p
  • Video Connector: RCA-style RGB x 3
  • Analog Audio Connector: RCA-style L + R (Stereo)
  • Digital Audio Connector: S/PDIF Coax. (Matrix), S/PDIF& TOSlink (Receiver)
  • Link Connector: RJ-45 Shielded
  • Remote Control Port: RS232 female, mini-stereo
  • Dimensions Sender: 17" W x 3.5" H x 5.875" D
  • Dimensions Receivers (ea): 6.6" W x 1.3" H x 2.7" D
  • Power Supply for Sender: one 24V DC (60 Watts)
  • Power Supply for Receivers: four 5V DC (10 Watts eachmax.)
  • Shipping Weight: 14 lbs.
