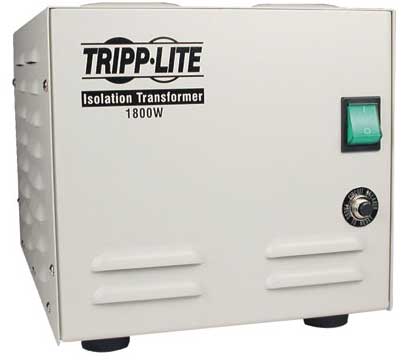

Tripp Lite IS1800HG
Isolation Transformer, Medical Grade, 1800 watts, 6 Out

OUR PART #  IS1800HG

Our Price: $742.00
List Price: $1,060.00
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components plced at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. 2-year warranty.

PLUG/OUTLETS: Input—NEMA 5-20P Hospital Grade; Output—6 NEMA 5-20R Hospital Grade (Package includes NEMA 5-15P user-installable hospital-grade replacement plug for compatiblity with common 15A wall receptacles)

ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

FORMAT: Upright tower

ISOLATION: Transformer-based line isolation with Faraday shield

Features:

The IS1800HG Medical Grade Isolation Transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression.

Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line

Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.

Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment

Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades

Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops

Additional surge suppression components placed at the line input and output combined with full line isolation provide continuous filtering of a full range of power line noise in all modes

Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power environments to harmless levels

Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch

Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common 15A wall receptacles

Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment

2-year limited product warranty

Specifications:

Amp Capacity:   15A at 120V AC
Efficiency:  96%
Form Factor:  Small tower format
Input Plug Type:  NEMA 5-20P-HG Hospital-Grade
Leakage Current:  Less than 100 microamps
Let-through Voltage (Combination Wave):  L-N: 250V L-G: 250V N-G: 0.5V
Let-through Voltage (Ring Wave):  L-N: 20V L-G: 20V N-G: 0.5V
Noise Suppression Rating:  35-65 DB
Nominal Voltage / Frequency:  120V / 60Hz
Output Receptacle Qty / Type:  6 NEMA 5-20R-HG Hospital-Grade
Over Current Protection:  Yes, 20A circuit breaker
Shipping Weight:  58.00 lbs. / 26.31 kg
Suppression Joule Rating:  1190 (1020 input / 170 output)
Surge Test Conditions:  Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
Total Harmonic Distortion:  Less than 1%
Transformer Type:  Hospital Grade, low impedance transformer-based line isolation transformer
Unit Dimensions (HWD/in.):  7.75 x 8.25 x 12.25
VA / Watt Capacity: 1800
Warranty:  2-year limited product warranty
INPUT
Input cord length (ft.):  6 ft.
PHYSICAL
Cooling method:  Convection

Tripp Lite IS1800HG
Isolation Transformer, Medical Grade, 1800 watts, 6 Out

OUR PART #  IS1800HG

Product Information:

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components plced at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1800HG includes 6 widely spaced NEMA 5-15R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. 2-year warranty.

PLUG/OUTLETS: Input—NEMA 5-20P Hospital Grade; Output—6 NEMA 5-20R Hospital Grade (Package includes NEMA 5-15P user-installable hospital-grade replacement plug for compatiblity with common 15A wall receptacles)

ELECTRICAL: 120V AC, 60Hz, 2.1A (Requires NEMA 5-15R wall receptacle)

FORMAT: Upright tower

ISOLATION: Transformer-based line isolation with Faraday shield

Features:

The IS1800HG Medical Grade Isolation Transformer offers line isolation, continuous noise filtering and enhanced common mode surge suppression.

Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line

Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas.

Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment

Serves as an inexpensive alternative to dedicated circuits and site electrical upgrades

Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops

Additional surge suppression components placed at the line input and output combined with full line isolation provide continuous filtering of a full range of power line noise in all modes

Active transformer filtering offers continuous common-mode noise rejection with no wearable parts; unique ability to reduce surges in the worst of power environments to harmless levels

Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode

Includes 6 widely spaced NEMA5-20R hospital-grade output receptacles, a 6-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch

Ships with NEMA5-20P input plug installed, package includes NEMA5-15P user-installable hospital-grade replacement plug for compatiblity with common 15A wall receptacles

Rugged all-metal unit housing; ships ready for upright tower placement in any industrial, medical, office or network environment

2-year limited product warranty

Specifications:

Amp Capacity:   15A at 120V AC
Efficiency:  96%
Form Factor:  Small tower format
Input Plug Type:  NEMA 5-20P-HG Hospital-Grade
Leakage Current:  Less than 100 microamps
Let-through Voltage (Combination Wave):  L-N: 250V L-G: 250V N-G: 0.5V
Let-through Voltage (Ring Wave):  L-N: 20V L-G: 20V N-G: 0.5V
Noise Suppression Rating:  35-65 DB
Nominal Voltage / Frequency:  120V / 60Hz
Output Receptacle Qty / Type:  6 NEMA 5-20R-HG Hospital-Grade
Over Current Protection:  Yes, 20A circuit breaker
Shipping Weight:  58.00 lbs. / 26.31 kg
Suppression Joule Rating:  1190 (1020 input / 170 output)
Surge Test Conditions:  Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
Total Harmonic Distortion:  Less than 1%
Transformer Type:  Hospital Grade, low impedance transformer-based line isolation transformer
Unit Dimensions (HWD/in.):  7.75 x 8.25 x 12.25
VA / Watt Capacity: 1800
Warranty:  2-year limited product warranty
INPUT
Input cord length (ft.):  6 ft.
PHYSICAL
Cooling method:  Convection
