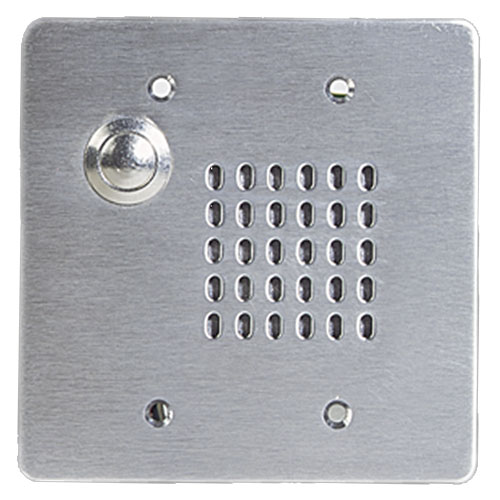

Atlas Sound VPCS-2GPB-2
Vandal Proof Intercom Stations With Cone Loudspeaker, Call Switch and 25V Transformer

OUR PART #:  VPCS-2GPB-2

Atlas-Sound’s VPCS-2GPB-2 2-gang intercom stations (Patent applied for) provides superior intelligibility for one or two-way communication in high-security applications.
Learn More
Our Price: $115.99
List Price: $144.99
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound VPCS-2GPB-2
Qty:
In Stock

Similar Products

Atlas-Sound’s VPCS-2GPB-2 2-gang intercom stations (Patent applied for) provides superior intelligibility for one or two-way communication in high-security applications. Units are designed for installation in detention, correctional, and institutional facilities. VPCS intercom stations are also ideal for use in high-risk public-access spaces such as hallways, lobbies, and parking garages.

Units withstand abuse, moisture, corrosion, dust, vibration, and temperature extremes from -10° to 150° F.

Stations are equipped with a 2-1/2" (64mm) dia. loudspeaker to deliver clear voice and signal transmission while the phenolic resin impregnated, moisture-proof cloth cone provides durable performance. Two die cast baffles protect the speaker from vandalism.

The VPCS-2GPB-2 includes a 25V transformer and a vandal-proof push-button call switch for installation where call origination is a required function or a desired adjunct to security. The face plate mounts to a standard 2 gang E.O. box with any counter sunk 6-32" mounting screw. Lead wires are 5" (127mm). Switch is single pole, single throw, normally open. Pushbutton assembly is constructed of nickel plated brass and sealed against moisture with a classification of 1P65.

Atlas Sound VPCS-2GPB-2 Features:

  • Call Switch Equipped Model
  • Choice of Basic or Call Switch Equipped Models
  • Durable 11-Gauge, Stainless Steel Face Plate
  • Transformer Models Include 2, 1, 1/2, and 1/4 Watt Taps at 25 Volts
  • Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
  • Unit Design Facilitates Quick and Easy Service Procedures

Atlas Sound VPCS-2GPB-2 Specifications:

  • Dimensions (HxWxD): 4 3/4" x 4 3/4" x 21/8" (12.065 x 12.065 x 5.3975 cm)
  • Shipping Weight 1.75 lbs (0.79 kgs)
  • Frequency Response 350 Hz-4500 Hz (+6dB)
  • Power Taps .25W, .5W, 1W, 2W
  • Sensitivity 88dB
  • Transformer 25V
