Samson SW55VSHQ7
Wireless Handheld System HT5, Q7, SR55

OUR PART #  SW55VSHQ7

Selected Model Price: $119.99
List Price: $159.99

Save up to 25%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The Stage 55 wireless microphone system provides affordable, quality wireless microphone technology to everyone. This system includes the SR55 diversity VHF receiver and HT5 handheld transmitter with Q7 microphone capsule.

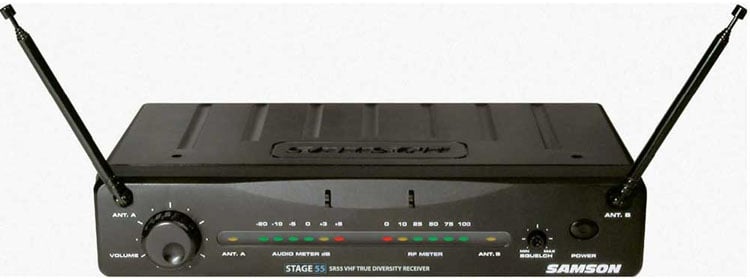

The SR55 receiver features diversity reception. A dual antenna reception system allows the 2 separate antennas to relay between each other in an effort to achieve the strongest possible signal. This minimizes any noise or drop out associated with RF interference. The SR55 features both balanced XLR, and unbalanced 1/4" outputs allowing the flexibility to connect to any audio system.

The HT5 handheld transmitter features the Samson Q7 cardioid microphone head. The cardioid polar pattern is effective in minimizing noise at the off-axis sections of the capsule, eliminating feed-back caused by monitor speakers. The neodymium electronics produce high signal gain on output while maintaining a low noise floor. The smooth frequency response ensures accurate pick and intelligibility. The HT5 also features a power output rating of 20mW. This results in greater range and further minimizes drop out.

Specifications:

SYSTEM

  • Type of System: Single Channel VHF Diversity Handheld System
  • RF Carrier Frequency Range: 173.80MHz to 213.20MHz
  • Approx. Working Range: 300ft
  • Overall Frequency Response: 40Hz to 15kHz +/- 3dB
  • Signal-to-Noise Ratio: > 100dB
  • Number Of Channels: Single frequency system, available in 25 different frequencies
  • Number Of Simultaneous Systems: 6

RECEIVER

  • Type of Receiver: SR55 Single Conversion Superheterodyne, Diversity
  • Type of Outputs: Balanced: 3-pin XLR male (+4dBm, 600 Ohm); Unbalanced: 1/4" Phone (-10dBm, 5k Ohm)
  • Headphone Monitoring: No
  • Power Requirements: 12 Volts DC, 100mA typical (110 mA max.), AC adapter supplied
  • Battery Type/Approx. Life: AC power only, not applicable
  • Display: LED Indicators - Antenna A or B: 2 LEDsAF Level: 6 LEDs; RF Level: 6 LEDs
  • Mounting Options: Flat Surface or Half Rack Mountable
  • Antenna Type: 1/4 wavelength telescopic
  • Dimensions: 8.5 x 1.75 x 4.6 (216 x 44 x 116mm)
  • Weight: 0.75 lb (20 g)

TRANSMITTER

  • Type of Transmitter: HT5 VHF Handheld Transmitter
  • Type of Input Connector: Capsule Permanently Attached
  • Type of Microphone: Q7
  • Polar Pattern: Cardioid
  • Interchangeable Mic Heads: No
  • Battery Type/Approx. Life: 9-Volt Alkaline: 6 hours typical
  • Mute Switch: Audio On/Off (Mute Switch)
  • Level Control: Yes, Trimpot
  • Antenna Type: Internal
  • Display: No
  • Dimensions: 1.46 x 9.17" (37 x 233mm) (W x H)
  • Weight: 7.1 oz (200 g)

Samson SW55VSHQ7
Wireless Handheld System HT5, Q7, SR55

OUR PART #  SW55VSHQ7

Product Information:

The Stage 55 wireless microphone system provides affordable, quality wireless microphone technology to everyone. This system includes the SR55 diversity VHF receiver and HT5 handheld transmitter with Q7 microphone capsule.

The SR55 receiver features diversity reception. A dual antenna reception system allows the 2 separate antennas to relay between each other in an effort to achieve the strongest possible signal. This minimizes any noise or drop out associated with RF interference. The SR55 features both balanced XLR, and unbalanced 1/4" outputs allowing the flexibility to connect to any audio system.

The HT5 handheld transmitter features the Samson Q7 cardioid microphone head. The cardioid polar pattern is effective in minimizing noise at the off-axis sections of the capsule, eliminating feed-back caused by monitor speakers. The neodymium electronics produce high signal gain on output while maintaining a low noise floor. The smooth frequency response ensures accurate pick and intelligibility. The HT5 also features a power output rating of 20mW. This results in greater range and further minimizes drop out.

Specifications:

SYSTEM

  • Type of System: Single Channel VHF Diversity Handheld System
  • RF Carrier Frequency Range: 173.80MHz to 213.20MHz
  • Approx. Working Range: 300ft
  • Overall Frequency Response: 40Hz to 15kHz +/- 3dB
  • Signal-to-Noise Ratio: > 100dB
  • Number Of Channels: Single frequency system, available in 25 different frequencies
  • Number Of Simultaneous Systems: 6

RECEIVER

  • Type of Receiver: SR55 Single Conversion Superheterodyne, Diversity
  • Type of Outputs: Balanced: 3-pin XLR male (+4dBm, 600 Ohm); Unbalanced: 1/4" Phone (-10dBm, 5k Ohm)
  • Headphone Monitoring: No
  • Power Requirements: 12 Volts DC, 100mA typical (110 mA max.), AC adapter supplied
  • Battery Type/Approx. Life: AC power only, not applicable
  • Display: LED Indicators - Antenna A or B: 2 LEDsAF Level: 6 LEDs; RF Level: 6 LEDs
  • Mounting Options: Flat Surface or Half Rack Mountable
  • Antenna Type: 1/4 wavelength telescopic
  • Dimensions: 8.5 x 1.75 x 4.6 (216 x 44 x 116mm)
  • Weight: 0.75 lb (20 g)

TRANSMITTER

  • Type of Transmitter: HT5 VHF Handheld Transmitter
  • Type of Input Connector: Capsule Permanently Attached
  • Type of Microphone: Q7
  • Polar Pattern: Cardioid
  • Interchangeable Mic Heads: No
  • Battery Type/Approx. Life: 9-Volt Alkaline: 6 hours typical
  • Mute Switch: Audio On/Off (Mute Switch)
  • Level Control: Yes, Trimpot
  • Antenna Type: Internal
  • Display: No
  • Dimensions: 1.46 x 9.17" (37 x 233mm) (W x H)
  • Weight: 7.1 oz (200 g)
