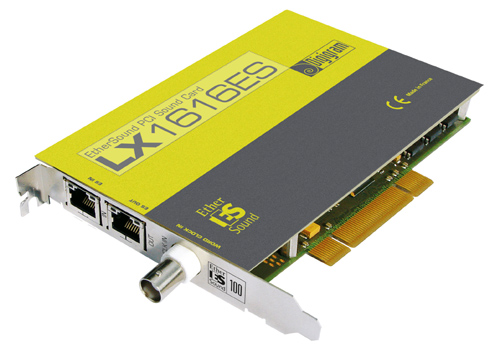

Digigram LX1616ES EtherSound PCI Sound Card Image 1
Digigram LX1616ES EtherSound PCI Sound Card
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

LX1616ES PCI network sound card with DirectSound and ASIO drivers can transmit and receive up to 64 EtherSound channels, thus connecting computer-based audio applications to the EtherSound network.

The LX1616ES is the right choice when direct-to-disk applications need to play and/or record selected ES-100 audio channels without jeopardizing flexibility. Should your application be highly price sensitive or require more channels in the future, the LX1616ES comes with a channel count of 16/16 that can be upgraded on the fly to 32/32, 48/48 or 64/64 through simple firmware updates.

Examples of applications for Broadcast organizations include multichannel live-assist, splitting and on-the-fly localization of programs, logging, link from computer-based call management systems to EtherSound-equipped digital mixing console...

LX1616ES also provides the perfect solution for logging applications in, for example, a courtroom installation or Parliament where there is a need to record many channels from different rooms across the building via an EtherSound network.

For hotels, conference centers and other multiroom venues, LX1616ES offers the ability to play back from 8 to 32 stereo music programs from just one PC, or from 16 to 64 in mono mode.

In a live environment the capacity to receive up to 64 channels from an EtherSound-ready mixing console and record them straight onto a computer's hard disk for mix down at a later date, offers a highly cost-effective solution for multichannel recording.

Applications:

  • Radio
  • Logging
  • Playback in fixed installations
  • Direct recording in installed live sound and touring

Features:

  • Links a computer directly to an EtherSound network using standard drivers
  • Short length PCI card
  • Inputs: from 16 to 64 EtherSound channels
  • Outputs: from 16 to 64 EtherSound channels
  • Audio formats supported: PCM 24 bits; 44.1/48 kHz
  • Low-latency DirectSound and ASIO drivers
  • Word Clock input

Specifications:

  • Configuration
    • Bus/Format: Universal PCI (32-bit/66 MHz), PCI-X compatible, master mode
    • Size: 175 mm x 99 mm x 20 mm
    • Power requirements (+3.3 V /+5 V / +12 V / -12 V): 1 A / 0.2 A / 0 A / 0 A
    • Operating: temp / humidity (non-condensing): 0°C / +50°C • 5% / 90%
    • Storage: temp / humidity (non-condensing): -5°C / +70°C • 0% / 95%
  • Inputs/ Outputs
    • Inputs:
      • - 16 EtherSound channels at 44.1 kHz or 48 kHz
      • - 8 EtherSound channels at 88.2 kHz or 96 kHz
      • - 4 EtherSound channels at 176.4 kHz or 192 kHz
    • Outputs:
      • - 16 EtherSound channels at 44.1 kHz or 48 kHz
      • - 8 EtherSound channels at 88.2 kHz or 96 kHz
      • - 4 Ethersound channels at 176.4 khz or 192 kHz
    • Other Inputs: Wordclock 44.1 kHz or 48 kHz (can be used if card is the audio clock for the EtherSound network)
  • Connectors
    • EtherSound IN: RJ45 female
    • EtherSound OUT: RJ45 female
    • Word Clock IN: BNC female
  • EtherSound
    • Technology: ES-100
    • Functions:
      • - Compatible with Ring Redundancy mode
      • - Can generate the audio network clock in all modes
    • Network clock frequencies supported:
      • - Can generate a 48 kHz audio clock for the EtherSound network
      • - Can synchronize on an EtherSound network at either 44.1 or 48 kHz
    • Other inputs: Word clock, the card can generate a 44.1 kHz or 48 kHz audio clock synchronized on the Word Clock In
    • EtherSound virtual control port: Virtual Ethernet interface (software) enabling an application such as EScontrol, installed on the same PC, to directly access an EtherSound network with no need of an additional network connection
  • Audio Specifications
    • Audio sampling frequencies supported:
      • - at 48 kHz network clock frequency:
      • * 192 kHz
      • * 96 kHz
      • * 48 kHz
      • - at 44.1 kHz network clock frequency:
      • * 176.4 kHz
      • * 88.2 kHz
      • * 44.1 kHz
    • Supported audio formats: PCM 16, 24, 24-bits "
  • Development environments
    • Management:
      • - WDM DirectSound
      • - ASIO
    • Supported operating systems: (32-bit versions)
    • - Windows XP
    • - 2003 Server
    • - Windows Vista
    • - Windows 7
