Coleman Cable 23328-BY-FOOT
12 AWG 3 Conductor Power / Control Cable, Priced By The Foot

OUR PART #:  23328-BY-FOOT

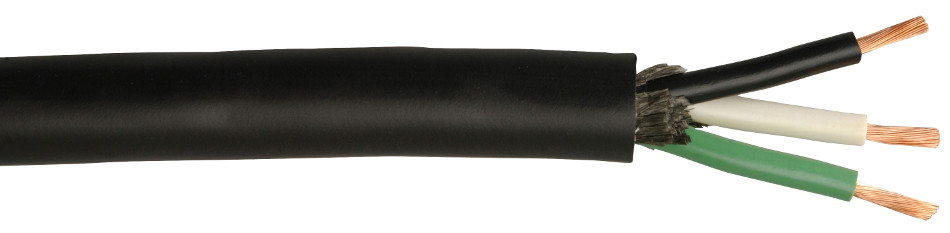

The Coleman Cable 23328 is a 3-conductor 12AWG cable, commonly used for power and control applications , priced by the foot.
Learn More
Our Price: $1.03
List Price: $1.08
Save up to 19% when you order by quantity!
  • Buy 50: $0.98 each.
  • Buy 100: $0.92 each.
  • Buy 200: $0.87 each.
Write the first review.

This product must be purchased in multiples of 10

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Coleman Cable 23328-BY-FOOT
Qty:
Similar Products

The Coleman Cable 23328 is a 3-conductor 12AWG cable, commonly used for power and control applications, priced by the foot.

Applications:

  • Portable industrial machinery and compressors
  • Conveyor and automated production equipment
  • Indoor and outdoor temporary power uses

Coleman Cables 23328 Features:

  • Excellent abrasion, ozone, sunlight, chemical and oilresistance, and waterresistant with high degree of flexibility
  • Non-wicking lightweight polypropylene fillers
  • Suitable and approved for submersion in water

Coleman Cables 23328 Specifications:

  • Conductors:
    • 18 AWG – 10 AWG fully annealed strandedbare copper
    • Class K stranding per ASTM B 174
  • Insulation:
    • T*prene Oil resistant Thermoplastic Elastomer (TPE)
    • Brilliant colors for easy identification
  • Jacket: Water, sunlight, and oil resistant, flame-retardant Black Seoprene® Thermoplastic Elastomer (TPE)
  • Legend:
    • CCI SEOPRENE 105C XX AWG (X.XX MM2) X/CSJEOOW
    • E54864 (UL) 300V -50C TO 105C -- CSA LL39573SJTOOW
    • (TPE) -50C TO 105C FT2 WATER RESISTANTP-241-3-MSHA
  • Industry Approvals:
    • UL Standard 62
    • NEC 501.140 Class I Div. 2
    • CSA 22. 2 No. 49
    • MSHA
    • NEC Article 400
    • Federal Spec #JC580
    • RoHS
