Galaxy Audio AS-1110
Any Spot Wireless Personal Monitor System with EB10 Dual-Driver Ear Buds

OUR PART #:  AS-1110

Galaxy Audio's AS-1110 UHF wireless personal monitor's transmitter has stereo XLR/ 1/4" inputs, a headphone output...
Learn More
Selected Model Price: $659.99
List Price: $959.98
Save up to 31%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio AS-1110
Select a Model: (shipping times are approximate)
Qty:

Similar Products

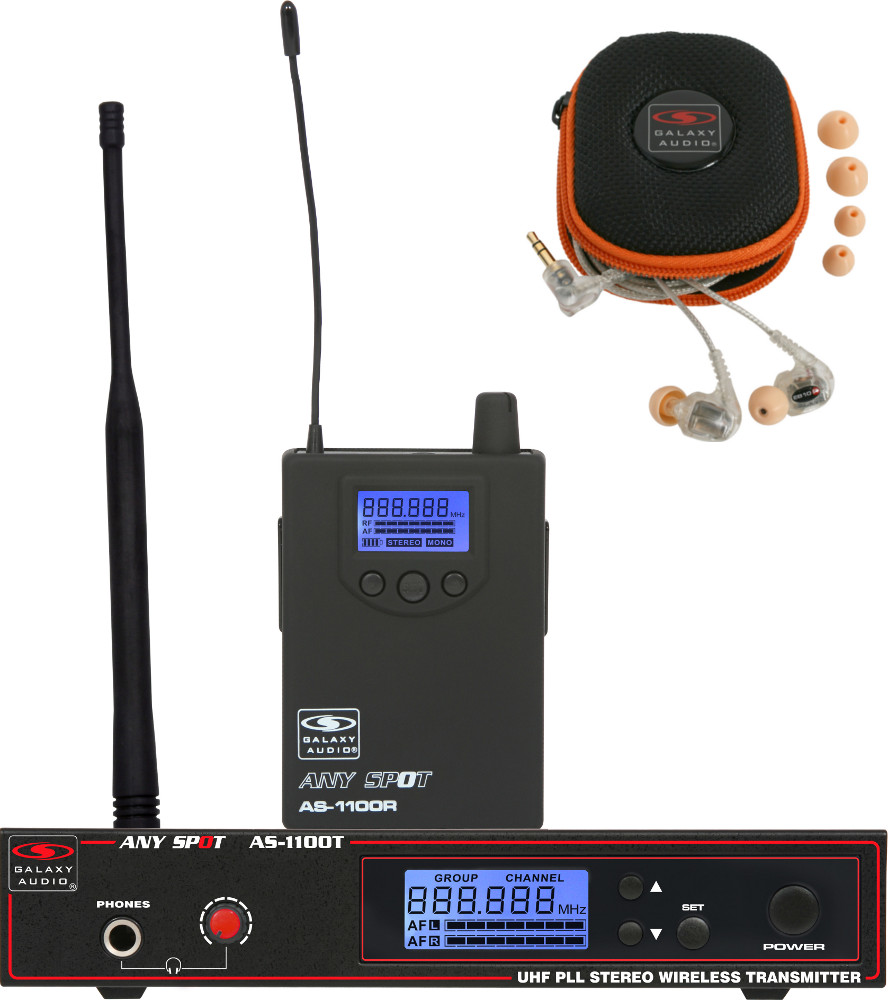

Galaxy Audio's AS-1110 UHF wireless personal monitor's transmitter has stereo XLR/ 1/4" inputs, a headphone output, and an LCD display which shows the channel and input level.  The receiver has an LCD display with channel and battery levels, and RF/AF indicator.  The AS-1100 is ideal for anyone looking for their first system, or to upgrade to the next level of wireless sound systems.

The EB-10 ear buds feature dual drivers with a passive crossover - one to deliver low frequencies and one to deliver the high frequencies.  The EB-10 has a MAX Power Input of 150mW and a Sensitivity of 120 dB/mW.  The EB-10 has a cord over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable).  The EB-10 includes zippered carrying case with a cleaning rod and three pairs of silicon sleeves - small, medium and large.

Galaxy Audio AS-1110 Specifications:

  • Transmitter Output Level: 10dBm
  • Operating Range: Under Typical Conditions 300ft (92m)
    Note: actual range depends on RF signal absorption, reflection, and interference
  • Audio Frequency Response: +/-3dB 60Hz~16KHz
  • Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14ºF to 122ºF (-10 Cºto +50 Cº)
    • Note: battery characteristics may limit this range

Transmitter

  • Max Audio input level: +6dBV
  • Gain Adjustment Range: 40dB
  • Input Impedance: 100kOhms
  • Dimensions: 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
  • Weight: 21oz. (605 g)
  • Power Requirements: 12-18 V dc at 300mA supplied by external power supply
  • XLR input: Impedance balanced
  • Pin1: Ground (cable shield)
  • Pin 2: Audio
  • Pin 3: No Audio

Bodypack Receiver

  • Audio Output Level: 100mW
  • Sensitivity: -94dBm for 30dB
  • Image Rejection: >55dB
  • Dimensions: 3.74" x 2.6" x 1" (95mm H x 65mm W x 25mm D)
  • Weight: 3.5oz (100 g) without batteries
  • Power Requirements: 2 (AA) size alkaline or rechargeable batteries
  • Battery Life: About 5 hours

EB10 Ear Buds

  • Sensitivity (@ 1 kHz): 120 dB/mW
  • Frequency Response: 20Hz-18kHz
  • Armatures: Dual; balanced (Single Hi/Single Low) with passive crossover
  • Impedance: 22 Ohms
  • Distortion: Less than 0.3%
  • Max. input power: 150mW
  • Cord Length: 55" (140 cm)
  • Net Weight (excluding cable): 0.25 oz. (7 g)
  • Accessories: Stylish carrying case, cleaning rod, three pairs of silicon sleeves (small, medium, large)
