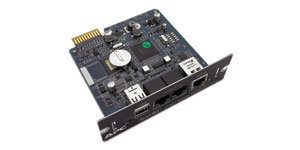

American Power Conversion AP9631
UPS Network Management Card 2 with Environmental Monitoring

OUR PART #:  AP9631

Remote monitoring and control of an individual UPS by connecting it directly to the network.
Learn More
Our Price: $500.85
List Price: $668.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion AP9631
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Remote monitoring and control of an individual UPS by connecting it directly to the network.

Includes: CD with software, Temperature Sensor, User Manual

Customizable Input Contacts
Monitor conditions from external devices.

IPv6 Support
Capable of operating on a network using IPv6 protocol

Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3

Localization
User interface available in major local languages.

Humidity monitoring
Changes in humidity are reported via the user interface or e-mail.

Temperature monitoring
Changes in temperature are reported via the user interface or e-mail.

Command line interface
Offers Telnet or SSH for remote management access.

Customizable Output Relays
Control output from external devices via output relay(s).

Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.

Scheduling
Customize shut down and reboot of connected equipment and UPSs.

Run command file
Run command file on shutdown sequence as well as start-up sequence.

Data logging
Identify problematic trends before they escalate or export the data log for analysis.

Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.

Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events)

Specifcations:

Communications & Management

Protocols HTTP,HTTPS,IPv4,IPv6,NTP,SMTP,SNMP v1,SNMP v3,SSH V1,SSH V2,SSL,TCP/IP,Telnet
Network Interface Connections RJ-45 10/100 Base-T
Authentication Radius

Physical

Net Weight 0.20 lbs. (0.09 kg)
Maximum Height 1.50 inches (38 mm)
Maximum Width 4.75 inches (121 mm)
Maximum Depth 4.50 inches (114 mm)
Shipping Weight 0.75 lbs. (0.34 kg)
Shipping Height 2.00 inches (51 mm)
Shipping Width 9.25 inches (235 mm)
Shipping Depth 6.25 inches (159 mm)
Color Black

Environmental

Operating Environment 32 - 113 °F (0 - 45 °C)
Storage Temperature 23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity 0 - 95%
Storage Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Elevation 0-50000 feet (0-15000 meters)

Conformance

Regulatory Approvals AS/NZS 3548 (C-Tick) Class A,EN 55022 Class A,EN 55024,FCC Part 15 Class A,GOST,ICES-003,VCCI Class A
Standard Warranty 2 years repair or replace
Environmental Compliance RoHS
