Galaxy Audio AS-900-4 UHF Wireless In-Ear Monitor System, for 4 Users

OUR PART #: AS-900-4

Copied to clipboard

The AS-900 Wireless Personal Monitor features an 80mW receiver output. The receiver also contains an RF and low battery indicator. ...Read more

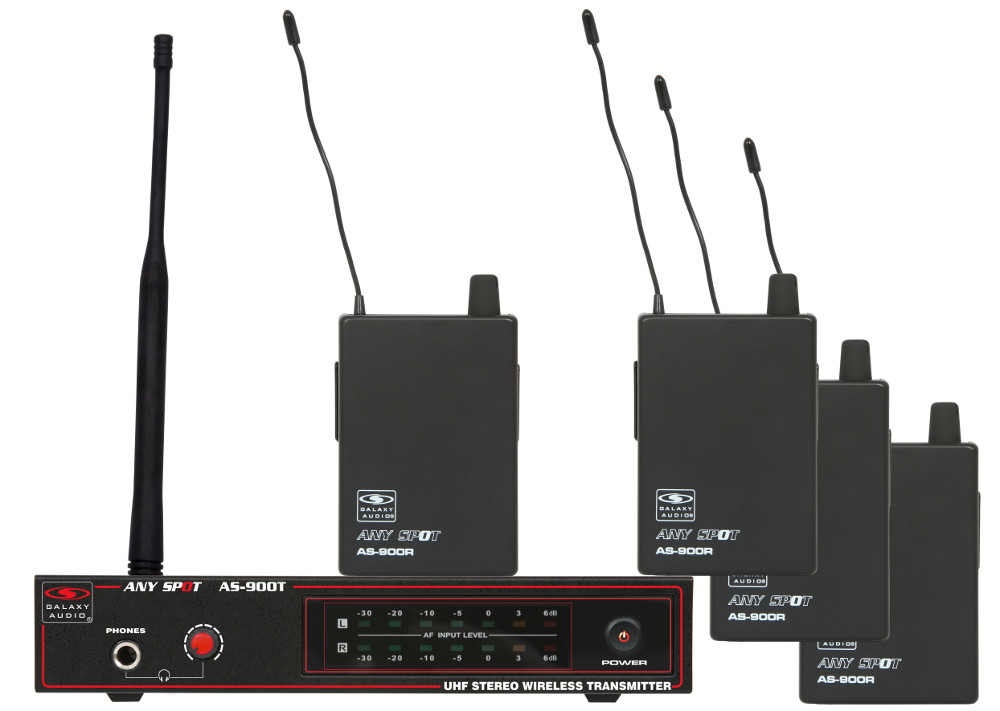

Galaxy Audio AS-900-4 UHF Wireless In-Ear Monitor System, For 4 Users Image 1
Galaxy Audio AS-900-4 UHF Wireless In-Ear Monitor System, For 4 Users Image 2
Galaxy Audio AS-900-4 UHF Wireless In-Ear Monitor System, For 4 Users
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AS-900 Wireless Personal Monitor features an 80mW receiver output. The receiver also contains an RF and low battery indicator. The transmitter has L/R level display, stereo XLR/ 1/4" inputs and an headphone output with volume control. The AS-900 is a single channel, fixed frequency unit.

The 900 Band Pack System includes four receivers and one transmitter. It is designed to get the whole band wireless in one package. The AS-900-4 will allow a band to send one stereo mix to 4 individuals (additional receivers may be purchased). Additional transmitters may be purchased at a later date to add mixes.

Galaxy Audio AS-900 Features:

  • Headphone Out Volume Control
  • 80 mW
  • 2 AA Batteries
  • RF Indicator
  • Low Battery Indicator
  • (4) pair EB4 earbuds

Galaxy Audio AS-900 Specifications:

  • Transmitter Output Level: 10dBm
  • Operating Range Under Typical Conditions: 150ft (50m)
    • Note: actual range depends on RF signal absorption, reflection, and interference.
  • Audio Frequency Response: +/-3dB | 80Hz~16KHz
  • Total Harmonic Distortion: +/-30KHz deviation 1KHz tone
  • Dynamic Range: > 90dB A-weighted
  • Operating Temperature Range: 14ºF to 122ºF (-10º C to +50º C)
    • Note:battery characteristics may limit this range
  • Transmitter:
    • Max Audio input level: +6dBV
    • Gain Adjustment Range: 40dB
    • Input Impedance: 100K
    • Dimensions: 1.5" x 8.3" x 3.8" (38mm H x 212mm W x 96mm D)
    • Weight: 21oz. (605 g)
    • Power Requirements: 12-18 V dc at 300mA supplied by external power supply
    • XLR input: impedance balanced
  • Bodypack Receiver:
    • Audio output level: 100mW
    • Sensitivity: -94dBm for 30dB SINAD, typical
    • Image Rejection: >70dB
    • Dimensions: 3.74" x 2.6" x 1" (95mm H x 65mm W x 25mm D)
    • Weight: 3.2oz. (90 g) without batteries
    • Power Requirements: 2 AA size alkaline or rechargeable batteries
    • Battery Life: About 5 hours
