Galaxy Audio AS-900
Any Spot Wireless Personal Monitor System with EB3 Earbuds

OUR PART #:  AS-900

The Galaxy Audio AS-900 is a great entry-level Wireless Personal Monitor system.
Learn More
Selected Model Price: $199.99
List Price: $259.99
Save up to 23%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio AS-900
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Galaxy Audio AS-900 is a great entry-level Wireless Personal Monitor system. This system features an 80mW receiver output and the receiver also contains an RF and low battery indicator. The transmitter has L/R level display, stereo XLR / 1/4" inputs and an headphone output with volume control. The AS-900 is a fixed frequency unit and you can add as many additional receivers as needed (sold separately).

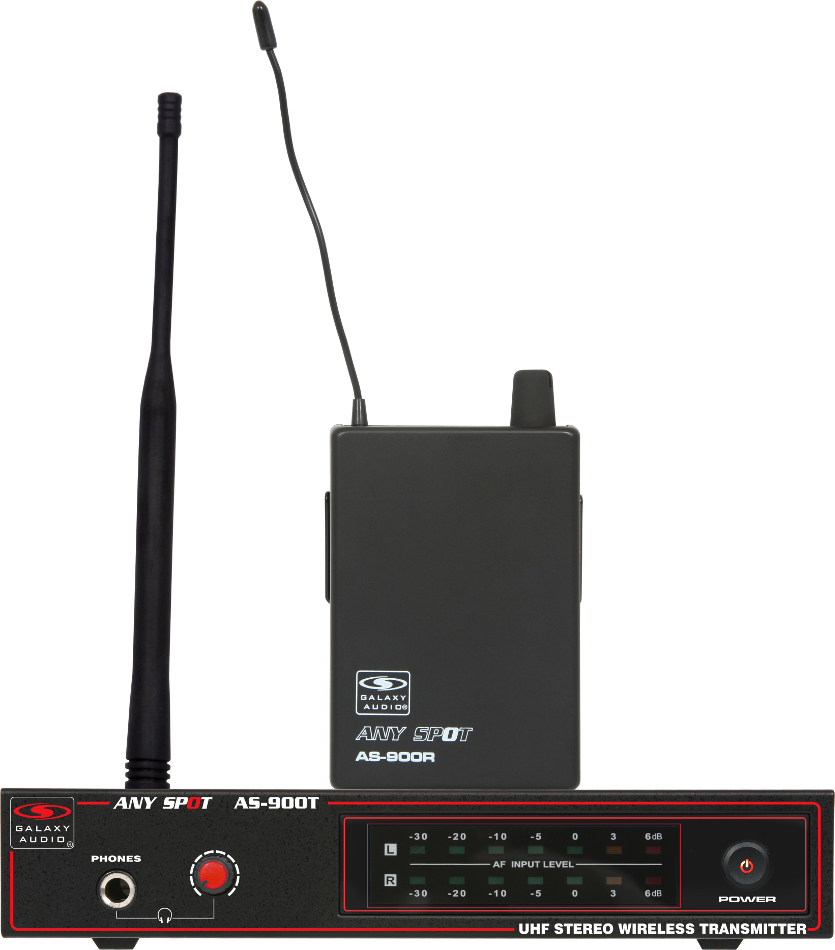

Galaxy Audio AS-900 Includes:

  • One (1) AS-900T Transmitter
  • One (1) AS-900R Bodypack Receiver
  • One (1) Pair of EB4 Earbuds
  • Rack Mount Kit

Galaxy Audio AS-900 Features:

  • AS-900T Transmitter:
    • AF L/R Indicator
    • Transmits in Stereo or Mono
    • Fixed Frequency
    • XLR / 1/4" Combo Input
    • RF Output 10 mW
  • AS-900R Receiver:
    • Headphone Out Volume Control
    • 80 mW
    • 2 AA Batteries
    • RF Indicator
    • Low Battery Indicator
    • 3.2 oz (90 g)
  • EB4 Ear Buds:
    • Stereo Personal Monitoring Earbuds
    • Single Titanium Drivers
    • High Fidelity with Extended Bass
    • Light and Comfortable
    • Aluminum Alloy Construction
    • Durable Cable

Galaxy Audio AS-900 Specifications:

  • Overall System:
    • Frequency Range and Transmitter Output Level Band:  UHF
    • Frequencies Available:  630.2 MHz, 633.4 MHz, 634.8 MHz, or 646.7 MHz, 650.2 MHz, or 659.0 MHz
    • Transmitter Output Level:  10 dBm
    • Operating Range:  Under Typical Conditions 150 ft (50m)
      • Note:  Actual range depends on RF signal absorption, reflection, interference, and battery characteristics
    • Audio Frequency Response:  +/- 3 dB 80 Hz - 16 kHz
    • Total Harmonic Distortion:  +/- 30 kHz deviation 1 kHz tone < 1%
    • Dynamic Range:  > 90 dB A-weighted
    • Operating Temperature Range:  14ºF to 122ºF (-10 Cº to +50Cº)
  • AS-900T Transmitter:
    • Max Audio Input Level:  +6dBV
    • Gain Adjustment Range:  40dB
    • Input Impedance:  100 kOhms
    • Dimensions (HxWxD):  1.5" x 8.3" x 3.8" (38mm x 212mm x 96mm)
    • Weight:  21oz. (605 g)
    • Power Requirements:  12-18 V dc at 300mA supplied by external power supply
    • XLR input:  Impedance balanced
      • Pin 1:  Ground (cable shield)
      • Pin 2:  Audio
      • Pin 3:  No Audio
  • AS-900R Receiver:
    • Audio Output Level:  80mW
    • Sensitivity:  -94 dBm for 30 dB
    • Image Rejection:  > 70 dB
    • Dimensions (HxWxD):  3.74" x 2.6" x 1" (95mm x 65mm x 25mm)
    • Weight:  3.2oz (90 g) without batteries
    • Power Requirements:  2 (AA) size alkaline or rechargeable batteries
    • Battery Life:  About 5 hours
  • EB4 Ear Buds:
    • Driver: Single Titanium
    • Frequency Response: 20Hz~20 kHz - ± 3dB
    • Impedance: 16 Ohms
    • Sensitivity: 102dB @ 1 kHz 126mV
    • Max Input Power: 5mW
    • Transducer Type: Dynamic
    • Plug: 3.5mm TRS
    • Cord Length: 51"
    • Accessories: Small, Medium and Large Silicone Gel Sleeves
